Used 2011 +GF+ MIKRON HSM 800 HIGH SPEED 4-Axis VMC W/4 STATION AUTO P/C:
Machine made in Nidau, Switzerland, inspect in USA plant by appointment
Approximately 4,890 original Spindle on hours total

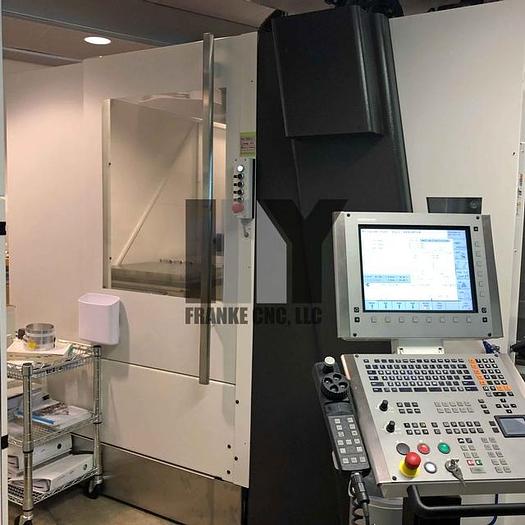

HEIDENHAIN iTNC530 CNC Control with Ethernet
The portal and the base of this machine are made of polymer concrete (man
made granite). This composite offers excellent vibration damping
characteristics-approximately 10 times greater than cast iron and
significantly better than welded construction.
SPECIFICATIONS
Max workpiece weight per pallet using the pallet changer 1,764 lbs(800kg)
Pallet is made of cast iron with 100 mm row of perforation M12 and a
grounded surface. Size 800 mm x 600 mm, high 55 mm. Centering plates and
chucking spigots already mounted.
EQUIPPED WITH:

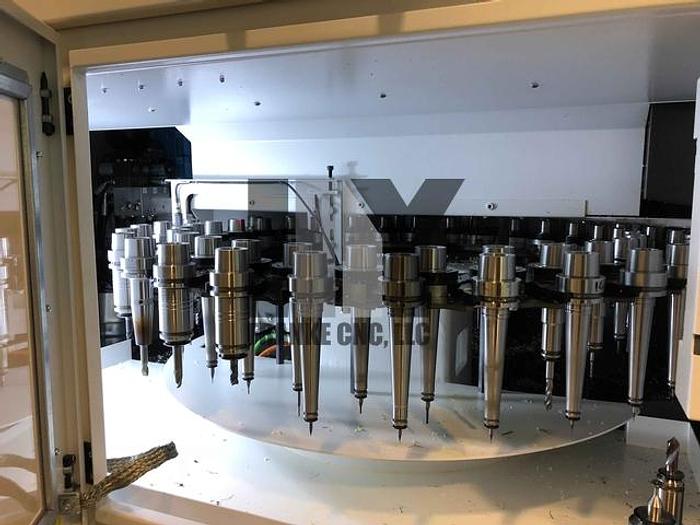

60 position automatic tool changer
Laser tool measuring

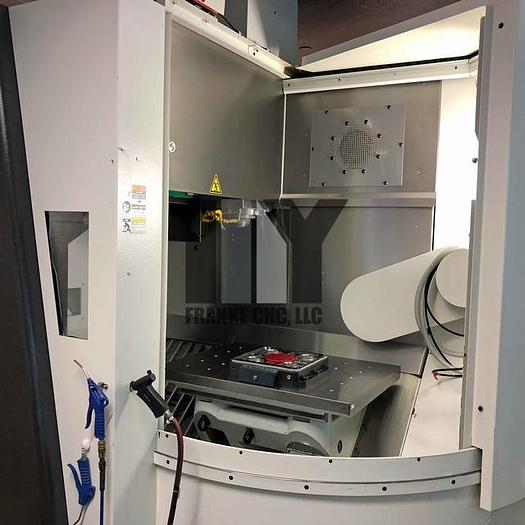

Completely enclosed machine enclosure
Movable electronic handwheel for control
Tool cleaning by air blast
Infrared probe for work piece set-up and measurement
Spray gun
Coolant tank

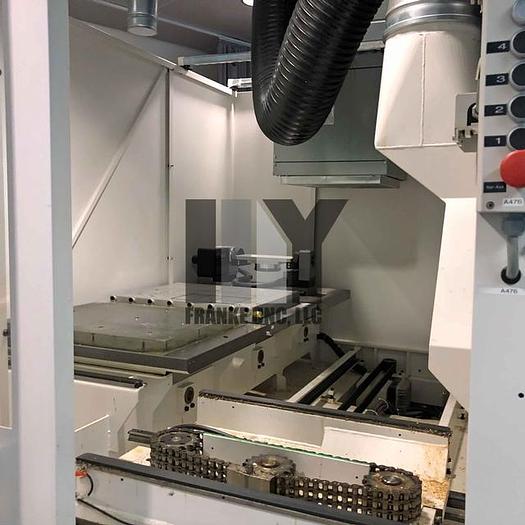

Automatic pallet changer with 4 x pallets
Lehmann EA-510.L SWISS MADE full 4th Axis (used perhaps 5 times total)
Spindle ID-HSK A63/OD-dia. 80 mm (3.15")
Spindle height axis 150 mm (5.9") off base plate
Run-out less than 6 microns
Load capacity to spindle 400 lbs
Spindle clamping torque 810 ft. lbs
Motor mounting left, includes 12 ft plug and protective hose
rotoFIX RFX.510-SB600a yoke 500, aluminum, including counter-bearing
rotoFIX RFX.510-SB600a yoke 600, aluminum, including counter-bearing
Vacuum workholding system with 600x800x48mm slot style chuck
63 CFM vacuum unit
Specifications
Manufacturer | +GF+ MIKRON |
Model | HSM 800 |
Year | 2011 |
Condition | Used |
Stock Number | 064255 |
Status | Available |
Number of axis | Full 4-Axis |
Tool changer | 60 ATC |
Control | HH iTNC 530 |
Spindle | 36,000 rpm |
Spindle taper | HSK-E50 |
X axis | 31.5" (800 mm) |
Y axis | 23.62" (600 mm) |
Z axis | 19.68" (500 mm) |
Machine total weight | 23,148 lbs (10,500 kg) |
X axis travel | 31.5" (800 mm) |
Y axis travel | 23.62" (600 mm) |
Z axis travel | 19.68" (500 mm) |
Maximum feed force (x) | 1878.75 lbf (8.35 kN) |
Maximum feed force (y) | 1158.75 lbf (5.15 kN) |
Maximum feed force (z) | 900 lbf (4 kN) |
Recommended maximum feed rate | 1,576 in/min (40 m/min) |
Rapid traverse (all axes) | 1,576 in/min (40 m/min) |
Pallet surface | 31.5" x 23.62" (800 mm x 600 mm) |
Number of pallets | 4 |
Pallet table level | 40.5" (1,030 mm) |
Spindle speed range | 100-36,000 rpm |
Spindle power (40% duty cycle) | 33.5 hp (25 kW) |
Spindle tool clamping | HSK-E50 |
Heidenhain glass scales x/y/z | 0.000004" (0.1 um) resolution |
