Description
5-AXIS MACHINING CENTERS
HSM600U 36k RPM
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

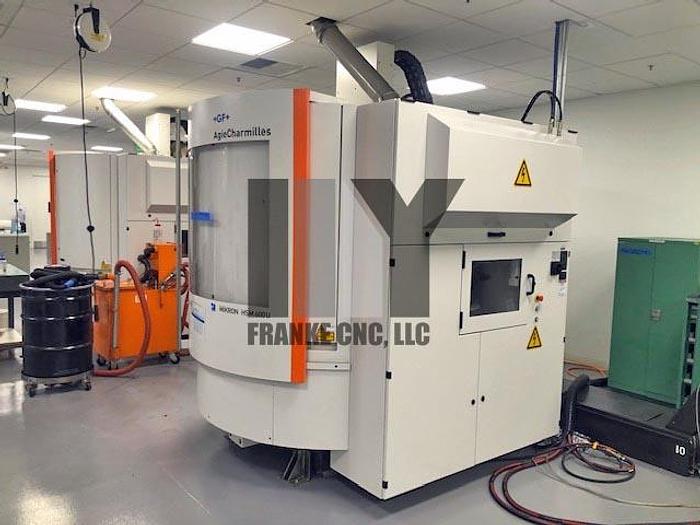

One used 2010 +GF+ MIKRON HSM600U 5-Axis Machining Center with Plt/Changer:
Machine was made at +GF+ in Nidau, Switzerland
CONTROL
Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup
WORKING RANGE
FEED DRIVE

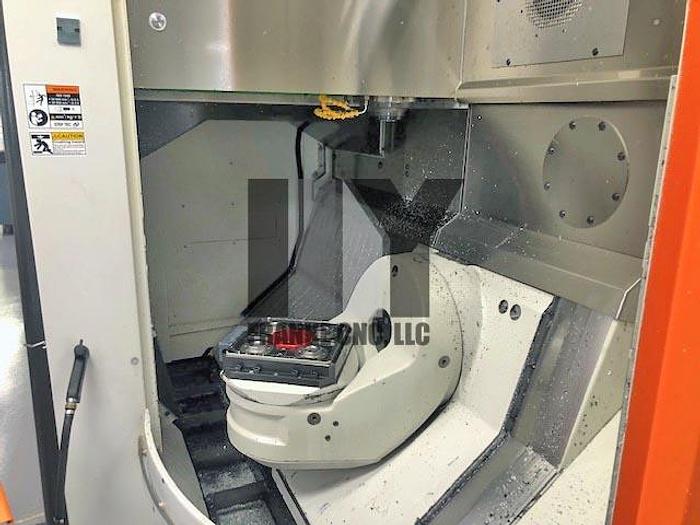

DIRECT DRIVE WORK TABLE
Maximum workpiece weight (automatic with pallet changer) 264 lbs (120 kg)
Maximum workpiece diameter that can be pallet changed 16.125" (409.6 mm)
Pallet type this machine is equipped with.. EROWA UPC Workpiece Pallets
With hydraulic clamping in turning and swivelling axis
All feed motors are liquid-cooled
Direct measuring system HEIDENHAIN rotary encoders B/C axes
AUTOMATION
WEIGHT
SPINDLE
EQUIPPED WITH:
Flood coolant on outside of spindle

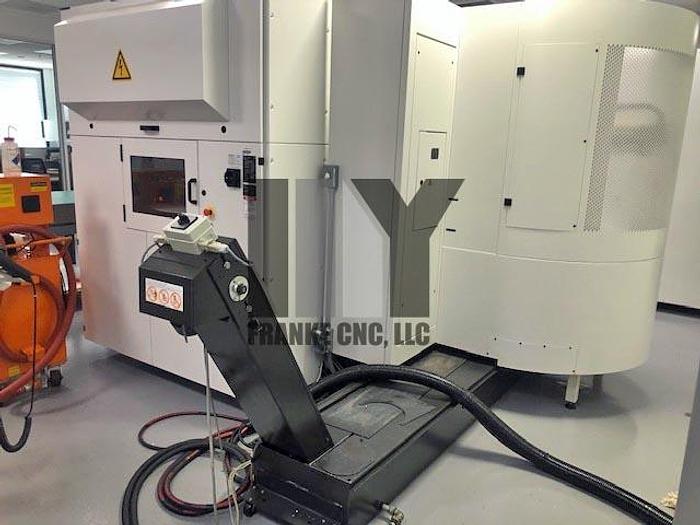

Scraper chip conveyor
Direct measuring system HEIDENHAIN glass scales X/Y/Z axes
Direct measuring system HEIDENHAIN rotary encoders B/C axes
Fully enclosed machine enclosure
SMM (Smart Machine Modules):
Advanced Process System-APS
Intelligent Thermal Control-ITC
Intelligent Thermal Control 5-axis-ITC 5-axis
Operator Support System-OSS
Beacon/Signal Lamp
Tool blow-off unit
Oil mist spray unit
Specifications
| Manufacturer | +GF+ MIKRON |
| Model | HSM600U 36k RPM |
| Year | 2010 |
| Condition | Used |
| Stock Number | 064355 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 60 ATC |
| Control | HH iTNC 530 |
| Spindle | 36,000 rpm |
| Spindle taper | HSK-E50 |
| X axis | 31.5" (800 mm) |
| Y axis | 23.6" (600 mm) |
| B axis | +30/-110 degrees |
| Z axis | 19.7" (500 mm) |
| C axis | 360 x 0.001 degrees |
| Longitudinal x-axis | 31.5" (800 mm) |
| Cross y-axis | 23.6" (600 mm) |
| Vertical z-axis | 19.7" (500 mm) |
| B-axis (swivel) | +30/-110 degrees |
| C-axis (rotary) | n x 360 degrees |
| Number of simultaneous axis | 5/5 simultaneous |
| Feed rate x/y/z | 1,653 IPM (42 m/min) |
| Feed rate b-axis (swivel) | 200 RPM |
| Feed rate c-axis (rotary) | 360 RPM |
| Acceleration x/y/z | up to 17 m/sec2 |
| Clamping surface | 12.6" x 12.6" (320 mm x 320 mm) |
| Maximum workpiece weight (manual loading) | 661 lbs (300 kg) |
| Maximum workpiece diameter that can be machined | 15" (381 mm) |
| Number of pallets this machine is equipped with | 7 pallet stations |
| Tool magazine automatic tool changer | 60 positions |
| Laser tool measuring system | Standard |
| Infrared parts measuring touch probe | M&H |

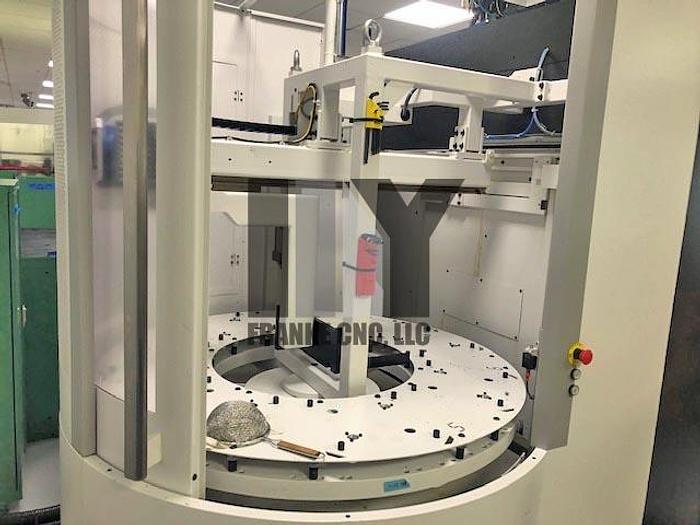

| Upc automatic pallet changer number of pallets | 7 pallet stations |
| Including pallet changer | Approximately 20,282 lbs (9,200 kg) |
| Machine base | Polymer concrete (man made granite) |
| Spindle rpm | 36,000 RPM |
| Spindle power 40% ed | 33.5 HP (25 kW) |
| Spindle torque 40% ed | 14.75 Ft/Lb (20 Nm) |
