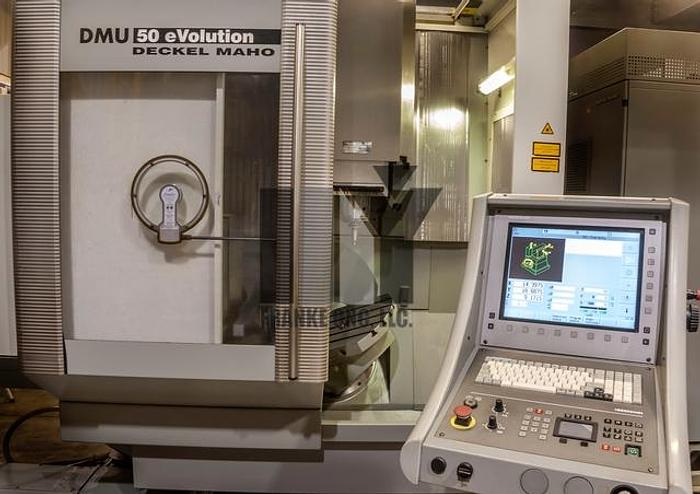

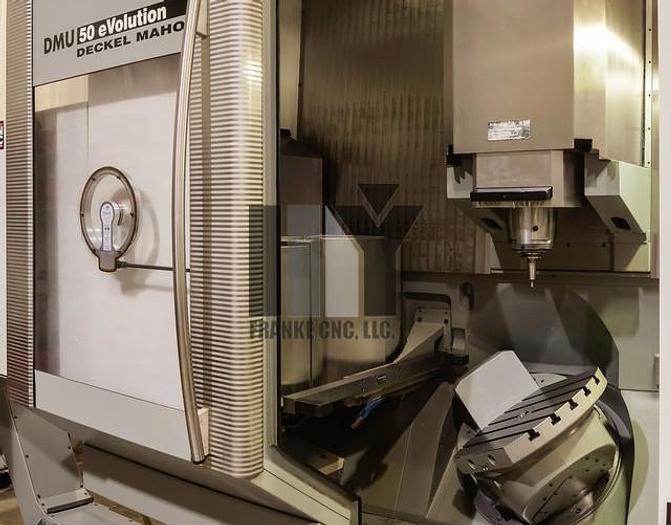

DECKEL MAHO DMG-DMU 50 eVolution
DECKEL MAHO DMG-DMU 50 eVolution
Description

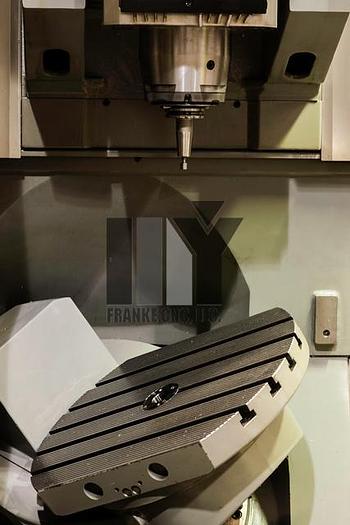

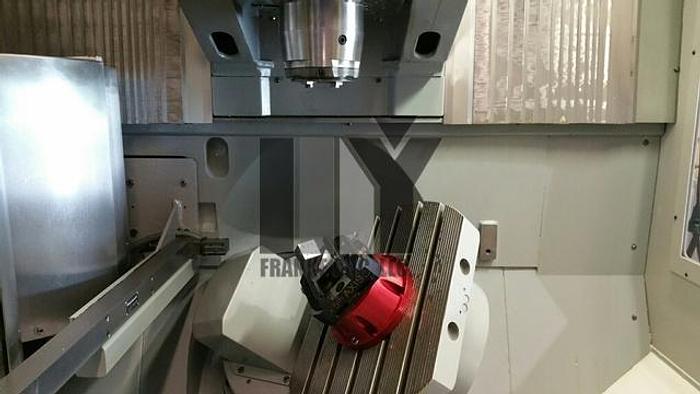

5-AXIS MACHINING CENTERS DMG-DMU 50 eVolution SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION: Used 2001 DECKEL MAHO DMG-DMU 50 eVolution 5Axis Simultaneous VMC: Machine made in Seebach, Germany -Clamp once, machine 5-Sides- Table on machine swivels 0-180 degrees and rotates 360 degrees which allows for 5-Axis simultaneous machining with one work piece clamping. HEIDENHAIN Millplus CNC control with electronic handwheel -WORK AREA- -MAIN DRIVE- -FEED DRIVES- -TOOL MAGAZINE- -FLOOD COOLANT- -MEASURING SYSTEM- Direct, Heidenhain glass scales, resolution 0.00004" for X/Y/Z Heidenhain direct angle encoders for B & C Axes -NC SWIVEL ROTARY TABLE- Rotation range 4th (rotary) C-axis 0-360 degrees (continous, full 4th) -EQUIPPED WITH- BLUM laser tool measuring of tool length, diameter,& broken tool detection PRODUCTION PACKAGE consisting of: 580 PSI (40 Bar) Coolant Thru the Spindle Chip Conveyor Visiport inspection window on front door of machine Electric oil mist extractor RENISHAW MP10 infrared parts measuring probe Buy this machine for as low as $1,753.00 per month for 48 months with $1.00 Purchase Option!* *Subject to credit review and approval. Vise shown in photos does not come with the machine Price quoted in US Dollars, Purchase Point is Hartland, WI 53029
Specifications
| Manufacturer | DMG MORI |
| Model | DMG-DMU 50 eVolution |
| Year | 2001 |
| Condition | Used |
| Stock Number | 064179 |
| Status | Available |
| Number of axis | 5-Axis Simultaneous |
| Tool changer | 60 ATC |
| Control | Millplus |
| Spindle | 18,000 rpm |
| Spindle taper | CAT 40 |
| X axis | 19.7" (500 mm) |
| Y axis | 16.5" (420 mm) |
| B axis | 0-180 degrees |
| Z axis | 15" (380 mm) |
| C axis | 360 x 0.001 degrees |
| Traverse path x (longitudinal) | 19.7" (500 mm) |
| Traverse path y (across) | 16.5" (420 mm) |
| Traverse path z (vertical) | 15" (380 mm) |
| Ac-motor spindle drive power 100% dc | 33.5 HP (25 kW) |
| Ac-motor spindle drive power 40% dc | 46.9 HP (35 kW) |
| Spindle speed | 20-18,000 rpm |
| Number of gear steps | None |
| Max spindle torque | 95.9 Ft/Lbs (130 Nm) |
| Spindle bearing diameter | 3.15" (80 mm) |
| Rapid traverse linear axes x/y/z | 1,968.5 ipm (50 m/min) |
| Feed range linear axes x/y/z | 787.4 ipm (20 m/min) |
| Storage pockets | 60 positions |
| Maximum tool weight | 13.22 lbs (6 kg) |
| Maximum tool diameter without vacant places | 3.15" (80 mm) |
| Maximum tool diameter with vacant places | 4.13" (105 mm) |
| Maximum tool length | 11.02" (280 mm) |
| Chip to chip time | Approximately 6 seconds |
| Amount of coolant | 52.8 gallons (200 l) |
| Flow rate | 5.28 gallon/minute (20 l/minute) |
| Clamping surface | 19.7" x 15.0" (500 x 380 mm) |
| Swivel range 5th (swivel) b-axis | 0-180 degrees |
| Rapid traverse, (swivel) b-axis | 26 rpm |
| Rapid traverse, (rotary) c-axis | 33 rpm |
| Maximum table load | 441 lbs (200 kg) |
| Table measuring system | Direct path measuring system in both axes |
| Table cooling | Drive cooling for B and C axis with heat exchanger |
| Table swivel time, horizontal/vertical | Approximately 1.5 seconds |
