DECKEL MAHO DMC200U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
Used 2003 DMG MORI DECKEL MAHO DMC200U Gantry Style 5-Axis UMC w/2 Pallets:

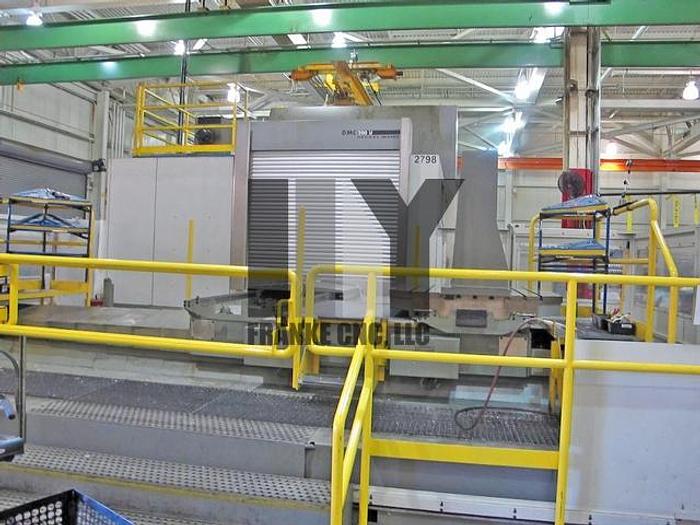

*May be inspected in US plant under power by appointment*
Machine was built at DECKEL MAHO Pfronten in Germany

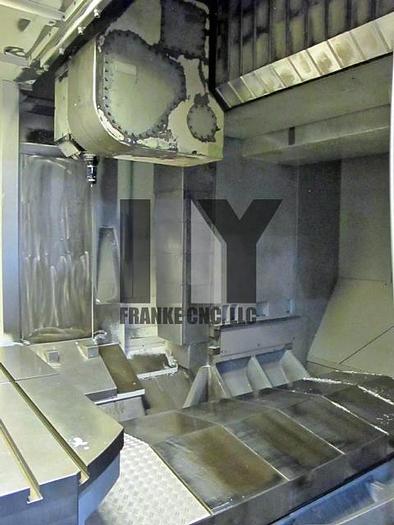

This machine is capable of simultaneous 5-axis and 5-sided machining
because of the universal swivel head which moves continuously between
vertical and horizontal spindle positions with a controlled A-axis

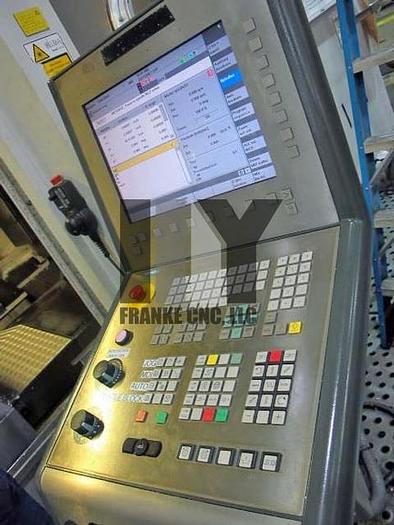

SIEMENS 840D Powerline control with electronic handwheel

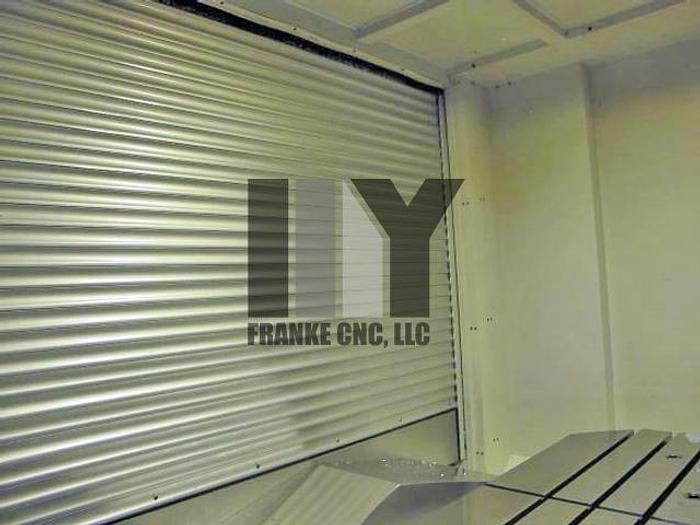

-WORKING RANGE-

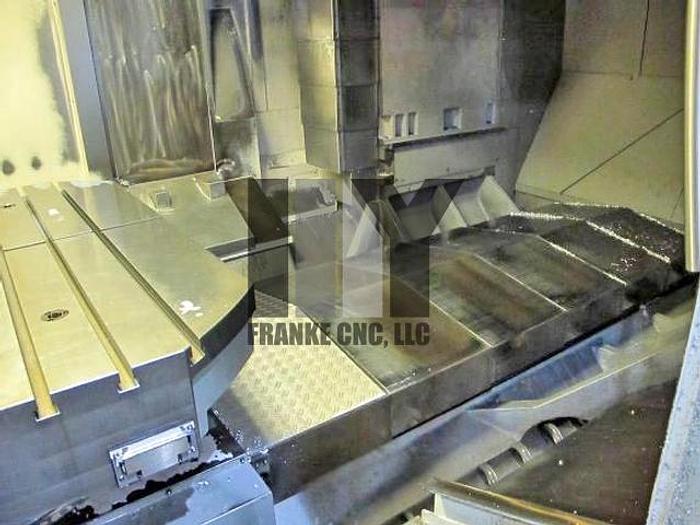

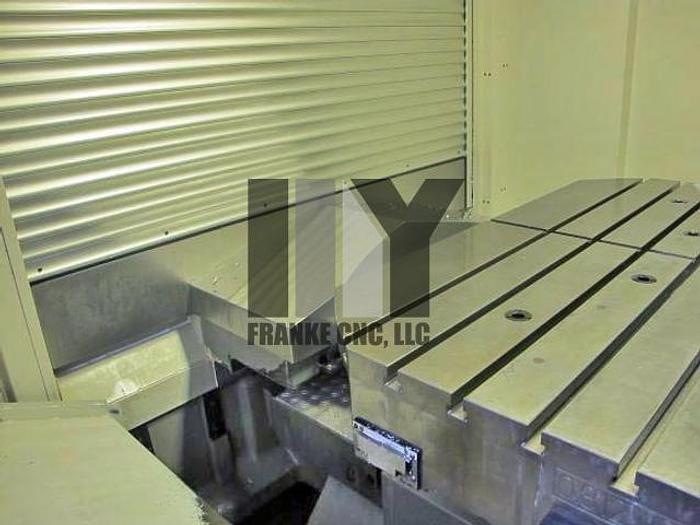

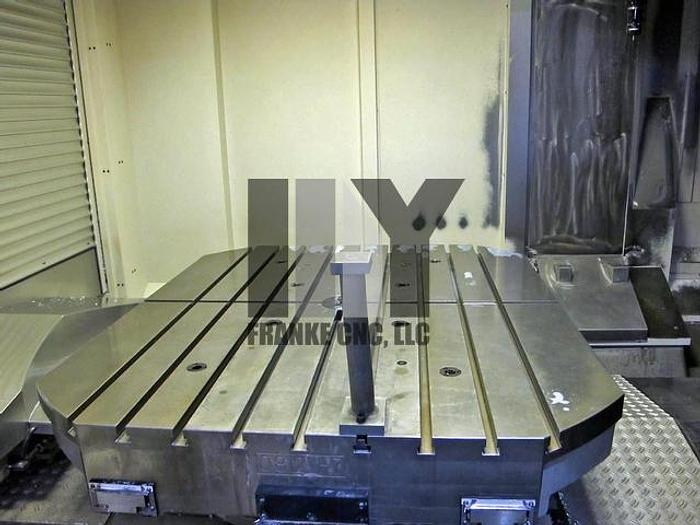

-WORKING TABLE (2 x T-slot PALLETS) NC ROTARY TABLE-
NC rotary table clamping surface 62.99" x 55.12" (1,600 mm x 1,400 mm)
-5th AXIS MILLING SPINDLE-

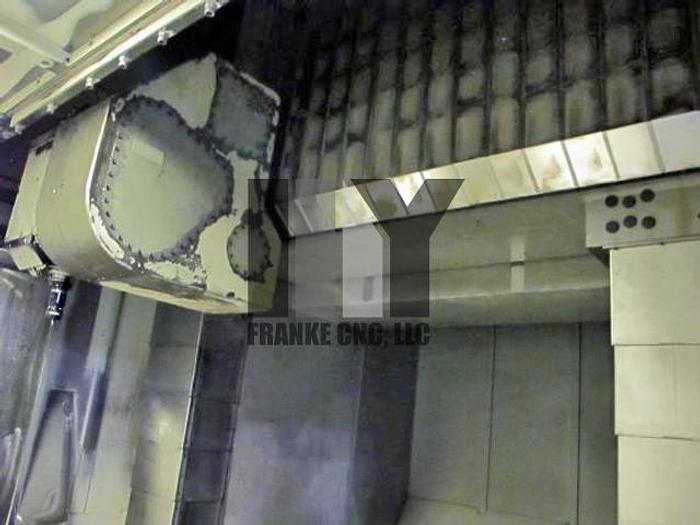

NC Controlled A-axis milling head. 2 seconds swivel time Horiz.-Vertical
Head swivels from horizontal to vertical & vertical to horizontal position
In addition head has a NC Controlled swivel angle from vertical position
0 degrees to the front 30 degrees past horizontal, 10 degrees to the back
in the direction of the gantry Z-axis-130 degrees in total (-10/+120)
-MAIN SPINDLE DRIVE-
Swivel moment milling spindle (100% duty cycle) 5,554 lb/ft (7,530 Nm)
Swivel time from vertical to horizontal & horizontal to vertical 2 sec.
Positional uncertainty: P (VDI/DGQ 3441)..................... 9 arc sec
-FEED DRIVES-
-120 POSITION VERTICAL CHAIN STYLE TOOL CHANGER-
-COOLANT PUMP-
-COOLANT THRU THE SPINDLE-
-WEIGHT-
Load on machine base including 2 x workpiece weight 83,600 lbs (41.8 to)
-EQUIPPED WITH-
Automatic pallet changer with 2 pallets total
BLUM Laser tool length measuring and broken tool detection
RENISHAW MP700 infrared parts measuring probe
Specifications
| Manufacturer | DMG MORI |
| Model | DECKEL MAHO DMC200U |
| Year | 2003 |
| Condition | Used |
| Stock Number | 064340 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 120 ATC |
| Control | SIEMENS 840D |
| Spindle | 10,000 rpm |
| Spindle taper | HSK-A100 |
| X axis | 70.87" (1,800 mm) |
| A axis | -10 to +120 degrees |
| Y axis | 78.74" (2,000 mm) |
| Z axis | 43.31" (1,100 mm) |
| C axis | 360 x 0.001 degrees |
| X axis (longitudinal) | 70.87" (1,800 mm) |
| Y axis (transverse) | 78.74" (2,000 mm) |
| Z axis (vertical) | 43.31" (1,100 mm) |
| Volume machining area | 3,960 dm3 |
| Nc rotary table maximum load | 7,716 lbs (3,500 kg) |
| Rotation range of table | 360 x 0.001 degrees (full 4th axis) |
| Type | Brushless AC/Digital |
| Power 40% duty cycle (s3) | 59 HP (44 kW) |
| Power 100% duty cycle (s1) | 42.9 HP (32 kW) |
| Speed range (spindle) | 20-10,000 rpm, no gear steps (motor spindle) |
| Maximum spindle torque | 212 lb ft (288 Nm) |
| Spindle bearing diameter front | 3.94" (100 mm) |
| Clamping power | 15 kN |
| Holding moment (40% duty cycle) | 6,144 lb/ft (8,330 Nm) |
| Feed rate | 0.04-590 IPM (1-15,000 mm/min) |
| Rapid feed (x-y-z) | 2,362 IPM-1,574 IPM-1,574 IPM (60-40-40 m/min) |
| Acceleration (x-y-z) | 6/4/4 m/s-2 |
| Feed power (x-y-z) | 15 kN |
| Ballscrews x/y/z | 63x30/80x30/63x30 mm |
| Number of pockets | 120 |
| Maximum tool weight | 44 lb (20 kg) |
| Maximum tool diameter without free pockets | 4.33" (110 mm) |
| Maximum tool diameter with free pockets | 9.05" (230 mm) |
| Maximum tool length | 17.72" (450 mm) |
| Pump output external jets | 15.85 gallon/minute (60 liter/minute) |
| Pump pressure external jets | 21.76 PSI (1.5 bar) |
| Pump output chip rinsing | 47.55 gallon/minute (180 liter/minute) |
| Tank volume | 238 gallon (900 liter) |
| Pressure | 580 PSI (40 bar) |
| Machine weight with table and pallet changer | 77,600 lbs (38.8 to) |
