Description
5-AXIS MACHINING CENTERS

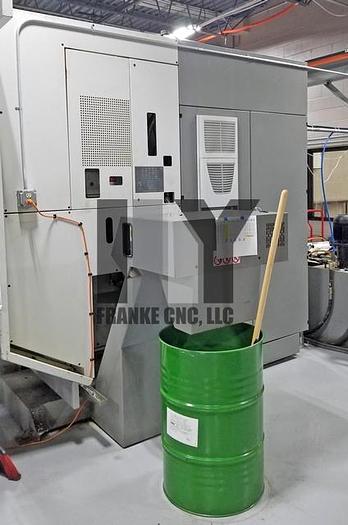

DECKEL MAHO DMU 125P hi-dyn

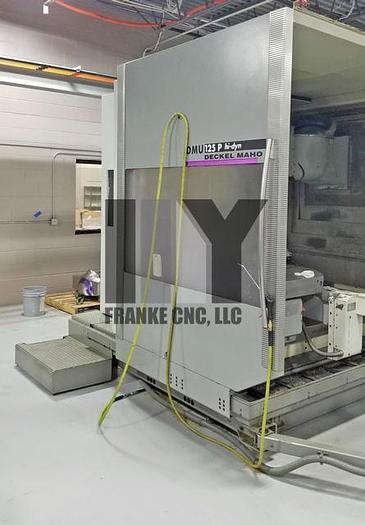

One used 2003/4 DMG MORI DECKEL MAHO DMU 125P hi-dyn 5-Axis Universal Machining Center:
May be inspected under power in USA plant under power by appointment.
Machine was built at DECKEL MAHO Pfronten GmbH in Pfronten,Germany 11/2003
HEIDENHAIN MillPlus iT 3-D control with 15" TFT flat screen and Electronic Handwheel. Highlights:
-Easy to operate
-Contour programming
-Measuring cycles
-Fast batch processing
-Increased operator comfort through familiar DIN-ISO programming
-Clear layout of the graphic user-interface
-DECKEL MAHO spindle sensor technology
-WORKING RANGE-
-MAXIMUM WORKPIECE DIMENSIONS-

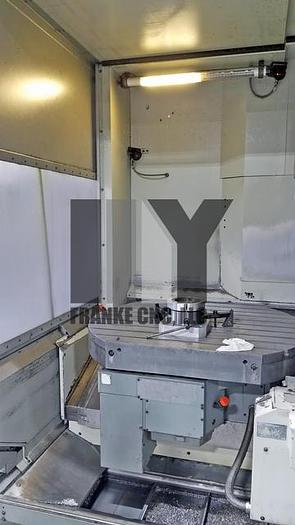

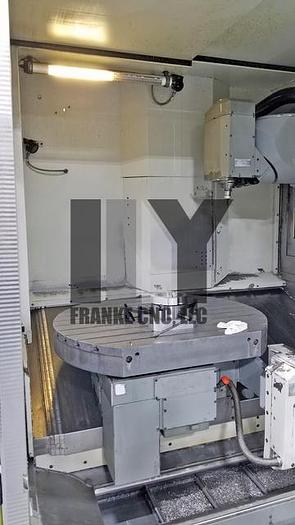

-NC ROTARY TABLE full 4TH AXIS (C-AXIS)-
Clamping surface 49.2" diameter x 39.4" (1,250 mm diameter x 1,000 mm)
This is a full 4th axis with Direct Measuring System (HEIDENHAIN encoder)

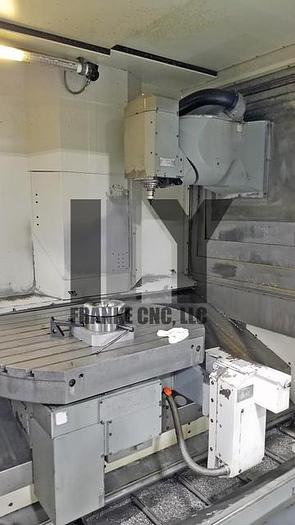

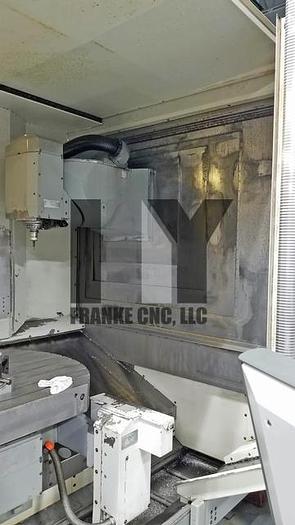

-NC CONTROLLED 5TH AXIS (UNIVERSAL MILLING HEAD, B-AXIS)-
B axis - NC controlled range up to 187 degrees. From vertical position
0 degrees to the left -7 degrees (in direction of tool magazine) and to
the right to horizontal position +180 degrees=3D187 degrees in total.
-MAIN DRIVE-
-FEED DRIVES-
-30 POSITION TOOL CHANGER-
Maximum tool diameter with no neighbouring empty pockets 3.94" (100 mm)
-HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM-
-HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM-
-EXTERNAL FLOOD COOLANT PUMP-
-580 PSI COOLANT THRU THE SPINDLE CENTRE (FORM AD)-
-EQUIPPED WITH-

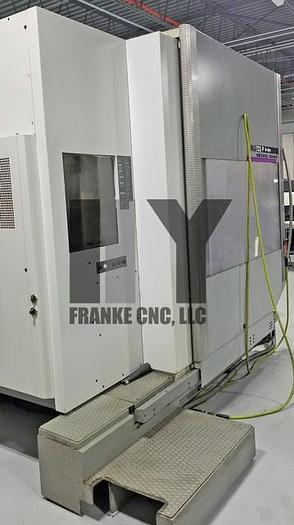

Fully enclosed protection cabin

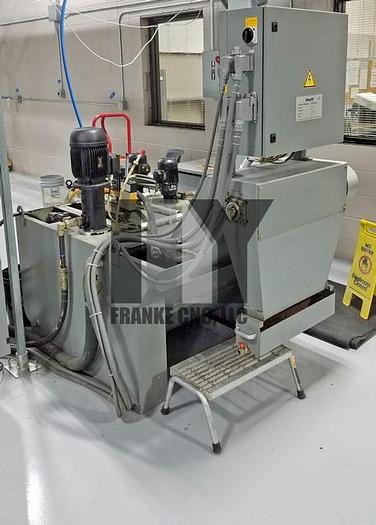

Production Package consisting of:
-Coolant tank 158 gallon (600 l)
-Automatic coolant cleaning through paper band filter
-580 PSI (40 bar) coolant thru the spindle centre (Form AD)
-Rotating clear-view window (in cabin window)
-Chip conveyor with interval control
RENISHAW MP10 Infrared parts measuring probe
BLUM Laser tool measuring-tool length, diameter & broken tool detection
-Automatic retraction of the measuring unit in a protected housing.
-Tool length and diameter measuring in horizontal/vertical position.
Spray pistol with pump, 14.5 PSI/10.4 gallon/min pump performance
To the best of our knowledge all details listed above are deemed correct.
It is the Buyer's responsibility to confirm all details and we encourage
an inspection of the machine(s) and accessories prior to purchase.
Specifications
| Manufacturer | DMG MORI |
| Model | DECKEL MAHO DMU 125P hi-dyn |
| Year | 2003 |
| Condition | Used |
| Stock Number | 064424 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 30 ATC |
| Control | HH MillPlus IT |
| Spindle | 18,000 rpm |
| Spindle taper | CAT 40 |
| X axis | 49.2" (1,250 mm) |
| Y axis | 34.6" (880 mm) |
| B axis | -7 to +180 degrees |
| Z axis | 31.5" (800 mm) |
| C axis | 360 x 0.001 degrees |
| First installed new in the usa | 01/2004 |
| X axis (longitudinal) | 49.2" (1,250 mm) |
| Y axis (transverse) | 34.6" (880 mm) |
| Z axis (vertical) | 31.5" (800 mm) |
| Maximum workpiece diameter | 47.2" (1,200 mm) |
| Maximum workpiece height | 59.06" (1,500 mm) |
| Maximum workpiece weight | 4,409 lbs (2,000 kg) |
| Maximum table load (centered) | 4,400 lbs (2,000 kg) |
| Maximum torque (40% ed) | 3,872 ft/lb (5,250 Nm) |
| Maximum holding momentum (40% ed) | 3,872 ft/lb (5,250 Nm) |
| Rapid speed rotary axis (c-axis) | 15 rpm x 0.001 degree |
| Type | Brushless AC/Digital |
| Power 40% duty cycle (s3) | 37 hp (28 kW) |
| Power 100% duty cycle (s1) | 25 hp (19 kW) |
| Spindle speed range | 20-18,000 rpm |
| Acceleration/deceleration | 2 seconds |
| Number of gear steps | None |
| Maximum spindle torque 40% duty cycle | 89.2 ft/lb (121 Nm) |
| Maximum spindle torque 100% duty cycle | 60.48 ft/lb (82 Nm) |
| Spindle bearing diameter front | 3.15" (80 mm) |
| Spindle bearing diameter rear | 2.17" (55 mm) |
| Feed rate (x-y-z) | 591 IPM (1-15,000 mm/min) |
| Rapid feed (x-y-z) | 1,575 IPM (40 m/min) |
| Acceleration (x-y-z) | 4.5/3.5/6 m/s-2 |
| Feed power (x-y-z) | 10/10/10 kN |
| Ball screw (x-y-z) | 40 mm x 20 mm |
| Ball screw spindle | 50 mm x 20 mm |
| Magazine type | Chain, horizontal, double gripper |
| Number of pockets | 30 |
| Maximum tool weight | 22.05 lb (10 kg) |
| Maximum tool diameter with neighbouring empty pockets | 6.3" (160 mm) |
| Maximum tool length | 17.7" (450 mm) |
| Input resolution | 0.001 mm |
| Pump output external jets pressure | 21.7 PSI (1.5 bar) |
| Pump output external jets flow rate | 10.6 gallon/minute (40 l/min) |
| Coolant tank capacity | 158 gallon (600 l) |
| Pump output | 6.1 gallon/minute (23 l/min) |
| Pump pressure | 580 PSI (40 bar) |
