Description
5-AXIS MACHINING CENTERS
DECKEL MAHO DMU100P duoBLOCK
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

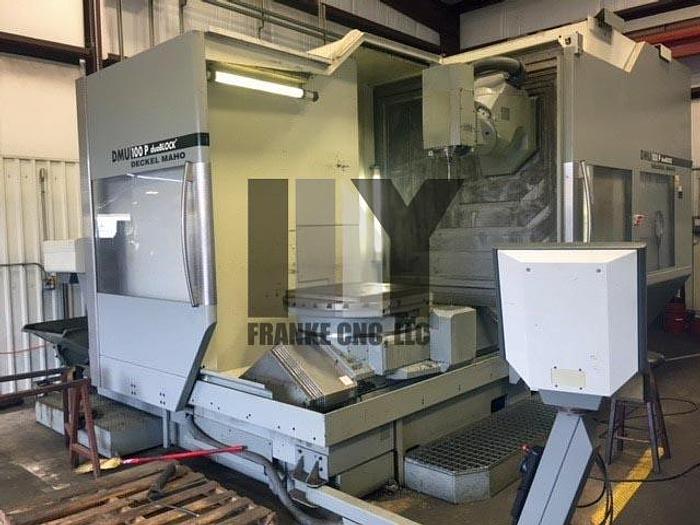

One used 2004 DECKEL MAHO DMG-DMU100P duoBLOCK 5-Axis Machining Center:
Machine was made at DECKEL MAHO Pfronten in Pfronten, Germany
May be inspected in USA plant under power by appointment!

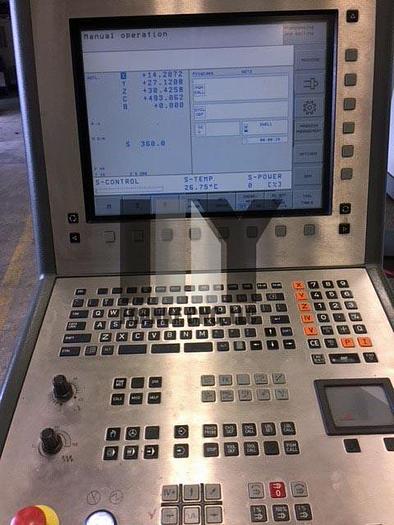

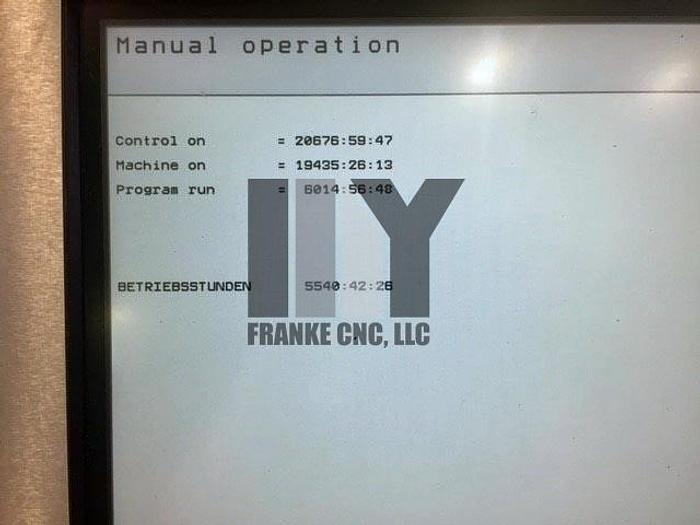

HEIDENHAIN iTNC 530 3-D control with 15" TFT flat screen & handwheel
-WORKING RANGE-
-MAXIMUM WORKPIECE DIMENSIONS-
-NC ROTARY TABLE 4TH AXIS (C-AXIS)-
1 x T-slot 18 H7 (alignment groove, table centre)
8 x T-slot 18 H12 (clamping grooves)
-NC CONTROLLED 5TH AXIS (UNIVERSAL MILLING HEAD, B-AXIS)-
B axis - NC controlled range up to 190 degrees. From vertical position
0 degrees to the left -10 degrees (in direction of tool magazine) and to
the right to horizontal position +180 degrees=3D190 degrees in total.
-MAIN DRIVE-
Tool clamping hydraulic/mechanical for draw bolt ISO/DIS 7388/II type B
-FEED DRIVES-
-60 POSITION TOOL CHANGER-
Maximum tool diameter with no neighbouring empty pockets 3.15" (80 mm)
-HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM-
-HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM-
-EXTERNAL FLOOD COOLANT PUMP-
-580 PSI COOLANT THRU THE SPINDLE CENTRE (FORM AD)-
-EQUIPPED WITH-
Fully enclosed protection cabin
Production Package consisting of:
-Coolant tank 158 gallon (600 l)

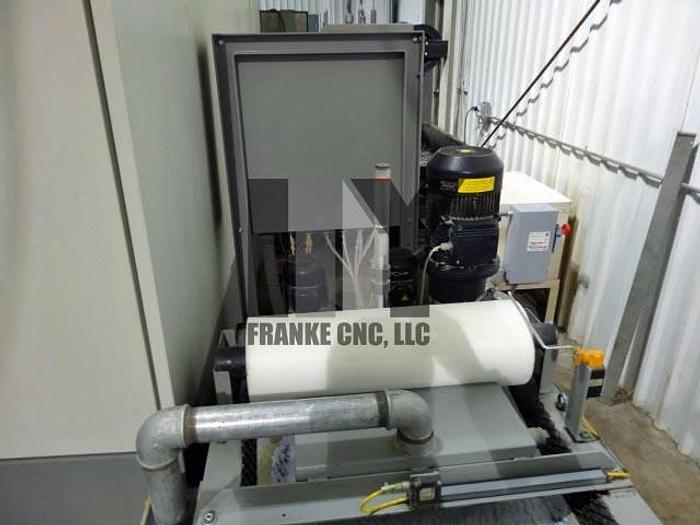

-Automatic coolant cleaning through paper band filter
-580 PSI (40 bar) coolant thru the spindle centre (Form AD)
-Rotating clear-view window (in cabin window)
-Chip conveyor with interval control

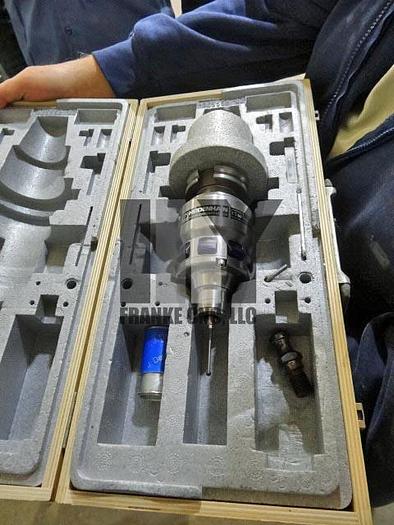

HEIDENHAIN TS 641 infrared parts measuring probe
BLUM Laser tool measuring-tool length, diameter & broken tool detection
-Automatic retraction of the measuring unit in a protected housing.
-Tool length and diameter measuring in horizontal/vertical position.

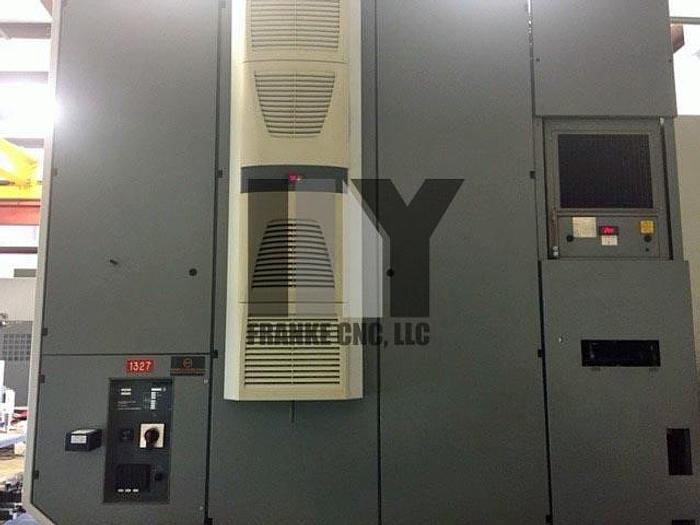

Multi input transformer for US voltages
Specifications
| Manufacturer | DMG MORI |
| Model | DECKEL MAHO DMU100P duoBLOCK |
| Year | 2004 |
| Condition | Used |
| Stock Number | 064193 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 60 ATC |
| Control | HH TNC 530 |
| Spindle | 18,000 rpm |
| Spindle taper | CAT 40 |
| X axis | 39.4" (1,000 mm) |
| Y axis | 39.4" (1,000 mm) |
| B axis | -10 to +180 degrees |
| Z axis | 39.4" (1,000 mm) |
| C axis | 360 x 0.001 degrees |
| X axis (longitudinal) | 39.4" (1,000 mm) |
| Y axis (transverse) | 39.4" (1,000 mm) |
| Z axis (vertical) | 39.4" (1,000 mm) |
| Maximum workpiece diameter | 49.2" (1,250 mm) |
| Maximum workpiece height | 62.2" (1,580 mm) |
| Maximum workpiece weight | 4,409 lbs (2,000 kg) |
| Clamping surface | 43.3" diameter x 35.4" (1,100 mm diameter x 900 mm) |
| Maximum table load (centered) | 4,400 lbs (2,000 kg) |
| Maximum torque (40% ed) | 3,614 ft/lb (4,900 Nm) |
| Maximum holding momentum (40% ed) | 3,614 ft/lb (4,900 Nm) |
| Rapid speed rotary axis (c-axis) | 30 rpm |
| Distance between t-slots | 4" (100 mm) |
| Type | Brushless AC/Digital |
| Power 40% duty cycle (s3) | 37 hp (28 kW) |
| Power 100% duty cycle (s1) | 25 hp (19 kW) |
| Spindle speed range | 20-18,000 rpm |
| Acceleration/deceleration | 2.2 seconds |
| Number of gear steps | None |
| Maximum spindle torque 40% duty cycle | 89.2 ft/lb (121 Nm) |
| Maximum spindle torque 100% duty cycle | 60.48 ft/lb (82 Nm) |
| Spindle bearing diameter front | 3.15" (80 mm) |
| Spindle bearing diameter rear | 2.36" (60 mm) |
| Feed rate (x-y-z) | 2,362 ipm (60 m/min) |
| Rapid feed (x-y-z) | 2,362 ipm (60 m/min) |
| Acceleration (x-y-z) | 6/5/6 m/s-2 |
| Feed power (x-y-z) | 12/12/12 kN |
| Ball screw (x-y-z) | 40 mm x 20 mm |
| Magazine type | Chain, horizontal, double gripper |
| Number of pockets | 60 |
| Maximum tool weight | 33.1 lb (15 kg) |
| Maximum tool diameter with neighbouring empty pockets | 6.3" (160 mm) |
| Maximum tool length | 19.7" (500 mm) |
| Input resolution | 0.001 mm |
| Pump output external jets pressure | 21.7 PSI (1.5 bar) |
| Pump output external jets flow rate | 10.6 gallon/minute (40 l/min) |
| Coolant tank capacity | 158 gallon (600 l) |
| Pump output | 6.1 gallon/minute (23 l/min) |
| Pump pressure | 580 PSI (40 bar) |
