Description
5-AXIS MACHINING CENTERS
C800U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:

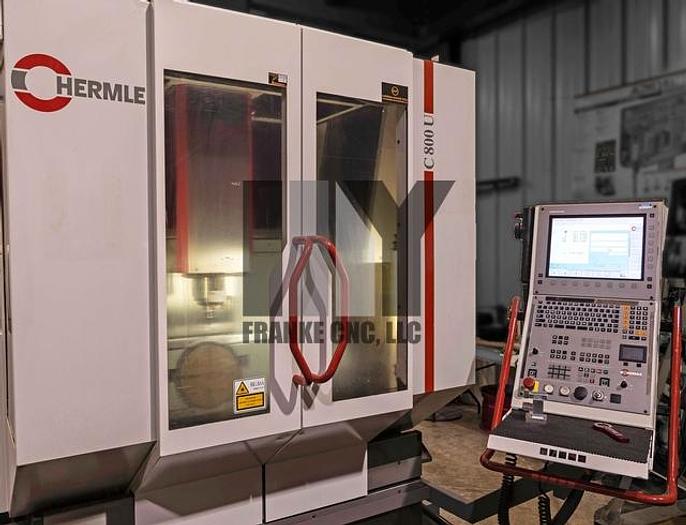

One used 2003 HERMLE C800U full 5-Axis VMC:
May be inspected under power by appointment in our Wisconsin showroom
Machine was made at Maschinenfabrik Berthold Hermle AG in Gosheim, Germany
HEIDENHAIN TNC 530 CNC Control with hand held electric control unit
WORKING RANGE
FEED DRIVES
Diameter and pitch of the ball screws X & Z axis 40/20 mm; Y axis 50/20mm
DIRECT MEASURING SYSTEM
MAIN SPINDLE DRIVE
TOOL CHANGER (PICK UP STYLE)
FLOOD COOLING SYSTEM
WEIGHT
CONNECTION

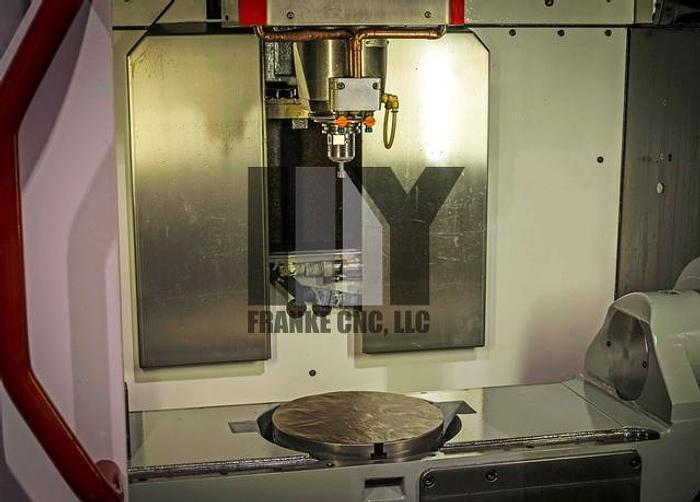

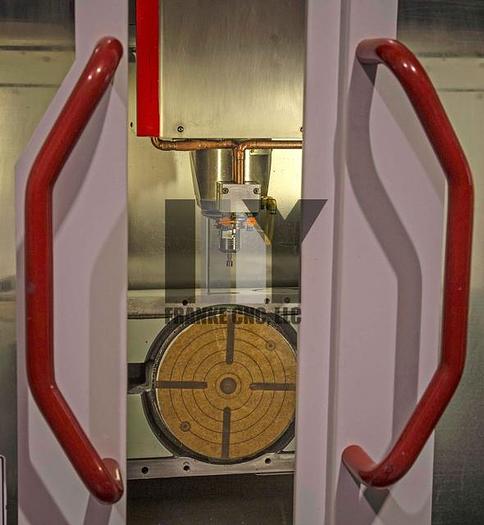

NC-CONTROLLED SWIVELING ROTARY TRUNNION TABLE
EQUIPPED WITH:
Rigid tapping
Tool life monitoring
Ethernet connection
Electronic Thermal Compensation
Heidenhain Glass Scales X/Y/Z Axes
Heidenhain Rotary Encoders A/C Axes
Leveling shoes
Chip conveyor
Available books, manuals, technical documentation
Spray nozzle
Machine light
Completely enclosed machining area with protective bellows
Miscellaneous tool holders
Granite machine base
Spindle test, geometry test, RENISHAW ball bar test available upon request
Specifications
| Manufacturer | HERMLE |
| Model | C800U |
| Year | 2003 |
| Condition | Used |
| Stock Number | 064342 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 30 ATC |
| Control | HH iTNC 530 |
| Spindle | 24,000 rpm |
| Spindle taper | HSK A63 |
| X axis | 31.5" (800 mm) |
| A axis | +/- 110 degrees |
| Y axis | 23.62" (600 mm) |
| Z axis | 19.7" (500 mm) |
| C axis | 360 x 0.001 degrees |
| X-axis | 31.5" (800 mm) |
| Y-axis | 23.62" (600 mm) |
| Z-axis | 19.7" (500 mm) |
| Feed force | 8000 N |
| Rapid movement | 1,378 IPM (35 m/min) |
| Acceleration | 5 m/s2 |
| Resolution | 0.0001 mm |
| Spindle power | 30.84 HP (23 kW) |
| Spindle torque | 58.3 lb/ft (79 Nm) |
| Spindle speed range | 20-24,000 RPM |
| Magazine positions | 30 |
| Max. tool diameter | 3.15" (80 mm) |
| Max. tool diameter with adjacent pockets empty | 4.92" (125 mm) |
| Max. tool length | 11.81" (300 mm) |
| Max. tool weight | 17.6 lb (8 kg) |
| Max. weight capacity of tool magazine | 265 lb (120 kg) |
| Chip to chip time acc. to vdi 2852 | 6.0 seconds |
| Coolant tank capacity | 79.2 gallon (300 l) |
| Pump capacity of the flood coolant system | 10.6 gallon/min (40 l/min) |
| Pump pressure of the flood coolant system | 43.5 PSI (3 bar) |
| With nc controlled swivelling rotary table | Approximately 18,000 lb |
| Mains | 400V/60 Hz |
| Power consumption | 37 KVA |
| Compressed air | 87 PSI (6 bar) |
| Rotary table diameter | 11.02" (280 mm) |
| A-axis swivel range of table | Plus or Minus 110 degrees |
| C-axis rotary range of table | 360 x 0.001 degrees (Full 4th Axis) |
| Maximum table load capacity | 440 lb (200 kg) |
| Optional rotary table top diameter | 17.7" (450 mm) (NOT with machine) |
