Description
5-AXIS MACHINING CENTERS
C600U
SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS
FOLLOWING, WE OFFER FOR YOUR CONSIDERATION:
One used 1999 HERMLE C600U full 5-Axis VMC with Coolant Thru the Spindle:
May be inspected under power by appointment in our Wisconsin showroom
Machine was made at Maschinenfabrik Berthold Hermle AG in Gosheim, Germany
HEIDENHAIN TNC 430 CNC Control with hand held electric control unit
HISTORY

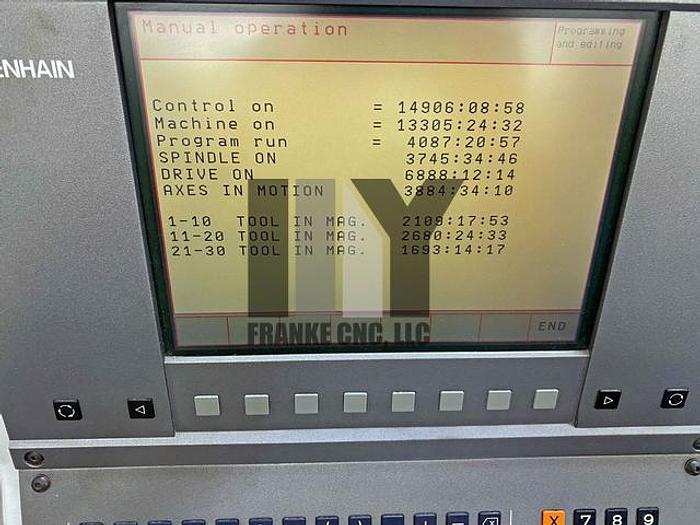

Approx 3,745 original SPINDLE ON hours over the life of the machine total!
Was used for Research & Development work in a laboratory
WORKING RANGE
FEED DRIVES
DIRECT MEASURING SYSTEM
MAIN SPINDLE DRIVE
TOOL CHANGER (PICK UP STYLE)
FLOOD COOLING SYSTEM
COOLANT SUPPLY THROUGH THE CENTRE OF THE TOOL (CTS) SYSTEM
WEIGHT
CONNECTION

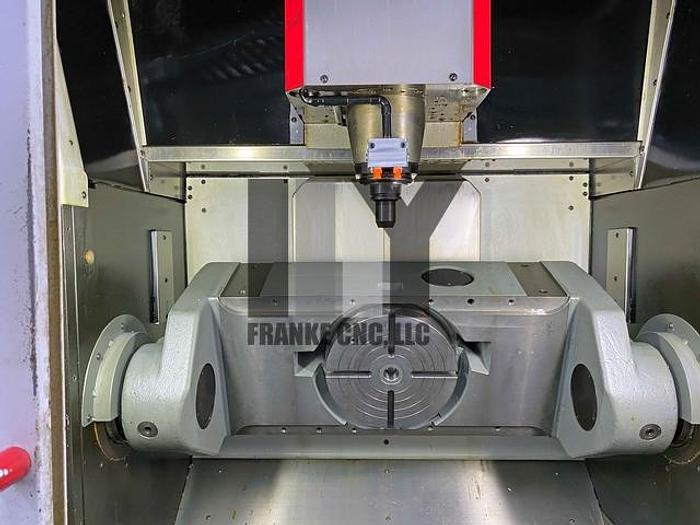

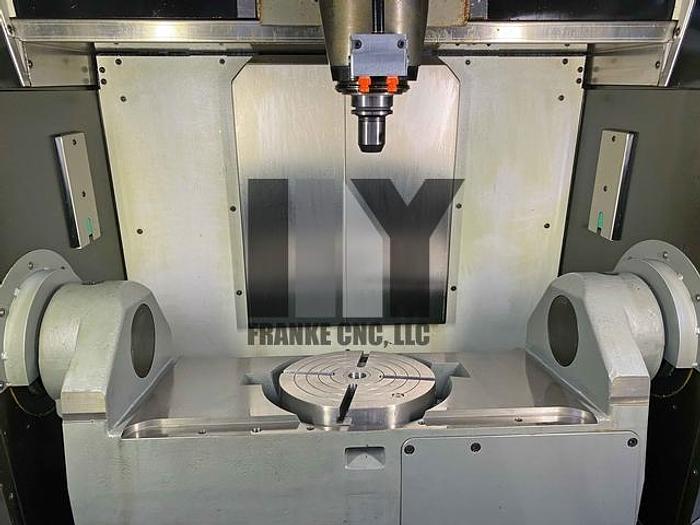

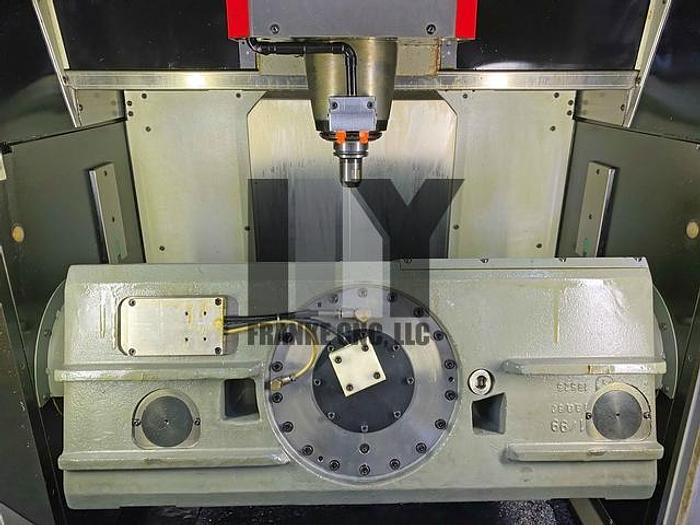

NC-CONTROLLED SWIVELING ROTARY TRUNNION TABLE
EQUIPPED WITH:
Rigid tapping
Tool life monitoring
Ethernet connection
Electronic Thermal Compensation
Renishaw Touch Probe
Heidenhain Glass Scales X/Y/Z Axes
Heidenhain Rotary Encoders A/C Axes
Leveling shoes
Chip conveyor
Available books, manuals, technical documentation
Spray nozzle
Machine light
Completely enclosed machining area with protective bellows
Approximate machine dimensions 124" L X 98" W X 94" H
Granite machine base
Spindle test, geometry test, RENISHAW ball bar test available upon request
Specifications
| Manufacturer | HERMLE |
| Model | C600U |
| Year | 1999 |
| Condition | Used |
| Stock Number | 064341 |
| Status | Available |
| Number of axis | 5-Axis |
| Tool changer | 30 ATC |
| Control | TNC 430 |
| Spindle | 12,000 rpm |
| Spindle taper | HSK A63 |
| X axis | 23.62" (600 mm) |
| A axis | +/- 110 degrees |
| Y axis | 17.72" (450 mm) |
| Z axis | 17.72" (450 mm) |
| C axis | 360 x 0.001 degrees |
| X-axis | 23.62" (600 mm) |
| Y-axis | 17.72" (450 mm) |
| Z-axis | 17.72" (450 mm) |
| Feed force | 6000 N |
| Rapid movement | 1,181 IPM (30 m/min) |
| Acceleration | 5 m/s2 |
| Diameter and pitch of the ball screws x/y/z axis | 40/20 mm |
| Resolution | 0.0001 mm |
| Spindle power | 20 HP |
| Spindle torque | 66 lb/ft (90 Nm) |
| Spindle speed range | 10-12,000 RPM |
| Magazine positions | 30 |
| Max. tool diameter | 3.15" (80 mm) |
| Max. tool diameter with adjacent pockets empty | 4.92" (125 mm) |
| Max. tool length | 9.84" (250 mm) |
| Max. tool weight | 13.2 lb (6 kg) |
| Max. weight capacity of tool magazine | 265 lb (120 kg) |
| Chip to chip time acc. to vdi 2852 | 5.5 seconds |
| Coolant tank capacity | 145 gallon (550 l) |
| Pump capacity of the flood coolant system | 10.6 gallon/min (40 l/min) |
| Pump pressure of the flood coolant system | 43.5 PSI (3 bar) |
| Pump capacity of the cts system | 6.3 gallon/min (24 l/min) |
| Pump pressure of the cts system | 580 PSI (40 bar) |
| With nc controlled swivelling rotary table | Approximately 15,700 lb |
| Mains | 400V/60 Hz |
| Power consumption | 37 KVA |
| Compressed air | 87 PSI (6 bar) |
| Rotary table diameter | 11.02" (280 mm) |
| A-axis swivel range of table | Plus or Minus 110 degrees |
| C-axis rotary range of table | 360 x 0.001 degrees (Full 4th Axis) |
| Maximum table load capacity | 220 lb (100 kg) |
| Optional rotary table top diameter | 17.7" (450 mm) (NOT with machine) |
