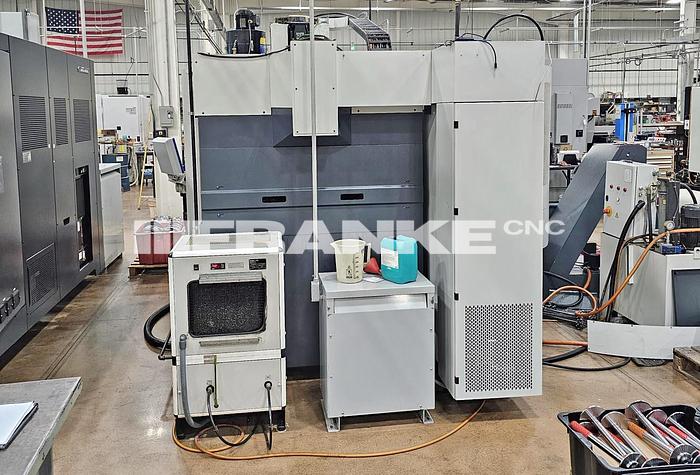

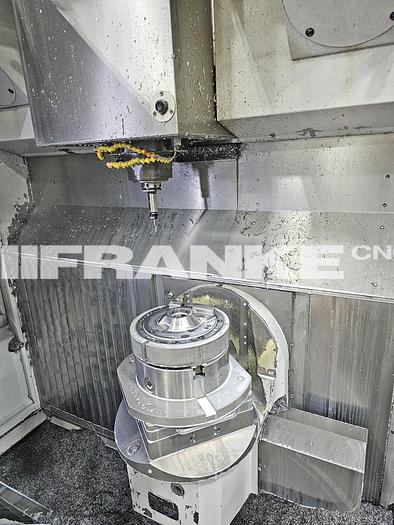

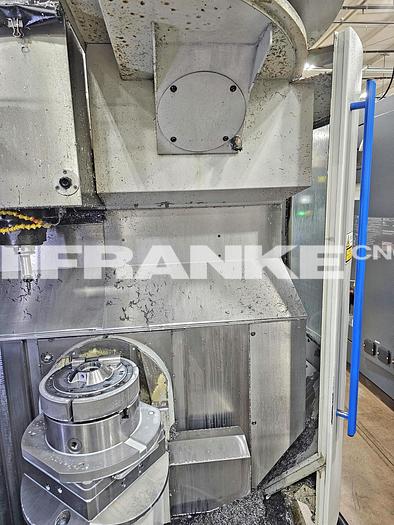

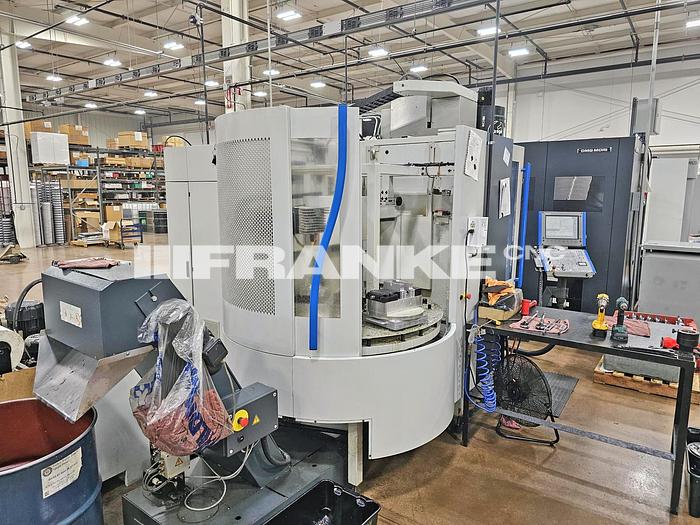

2008 +GF+ MIKRON UCP 600 Vario 5-Axis

Inventory Number: 064451

One used 2006/2008 +GF+ MIKRON UCP 600 Vario 5-Axis Machining Center with Pallet Changer:

HISTORY

Machine was manufactured at +GF+ in Nidau, Switzerland 8/2006

Machine was sold as a DEMO and first installed new at customer in the USA 3/2008

CONTROL

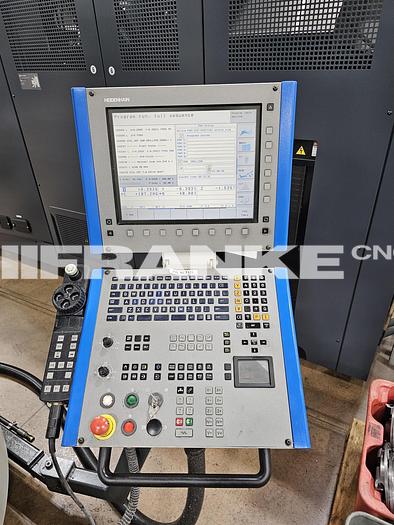

HEIDENHAIN iTNC 530 with Ethernet and electronic handwheel for part setup

WORKING RANGE

Longitudinal X-Axis.....................................  23.6" (600 mm)

Cross Y-Axis............................................  17.7" (450 mm)

Vertical Z-Axis.........................................  17.7" (450 mm)

Maximum Workpiece Size……17.72” (450 mm) diameter x 17.72” (450 mm) height x 441 lbs (200 kg)

B-Axis (Swivel).......................................  -115/+30 degrees

C-Axis (Rotary)........................................  n x 360 degrees

Number of simultaneous axis...........................  5/5 simultaneous

FEED DRIVE

Feed Rate X/Y/Z.....................................  590 IPM (15 m/min)

Rapid Speed X/Y/Z...................................  866 IPM (22 m/min)

Rapid Speed B-Axis (Swivel).....................................  25 RPM

Rapid Speed C-Axis (Rotary).....................................  33 RPM

WORKING TABLE

Pallet Clamping Surface..11.02" x 11.02” (280 x 280 mm) or 13.78” x 13.78” (350 x 350 mm) pallet sizes

Maximum workpiece weight (manual loading).............  441 lbs (200 kg)

Pallet type this machine and pallet changer are equipped for.............  System 3R Dynafix pallets

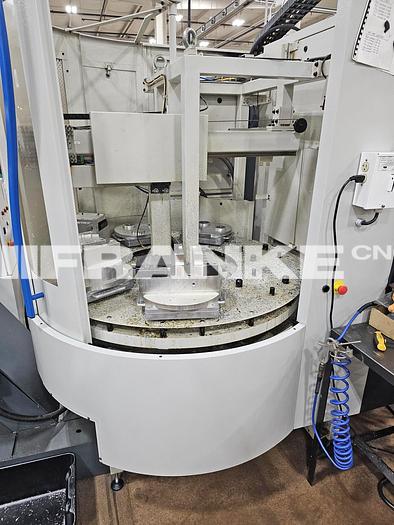

Number of pallet stations pallet changer is equipped with……7 x pallet stations

All feed motors are liquid-cooled

Direct measuring system on the B and C-axis HEIDENHAIN rotary encoders 0.00004” (1 um) resolution

AUTOMATION

Automatic tool changer....................................  30 positions

BLUM Laser tool measuring system..............................  Standard

Infrared parts measuring touch probe...............................  M&H

Automatic pallet changer number of pallet stations...................  7

WEIGHT

Including pallet changer...........  Approximately 16,976 lbs (7,700 kg)

Machine base...................................................  Polymer/man made granite

STEPTEC SWISS MADE SPINDLE

Spindle taper..................................................  HSK A63

Spindle RPM.................................................  20,000 RPM

Spindle power 40% ED...................................  40.2 HP (30 kW)

Spindle torque 40% ED...............................  67.1 Ft/Lb (91 Nm)

EQUIPPED WITH:

Pallet changer Dynafix

Chip conveyor for higher demands for aluminum machining

Spray gun

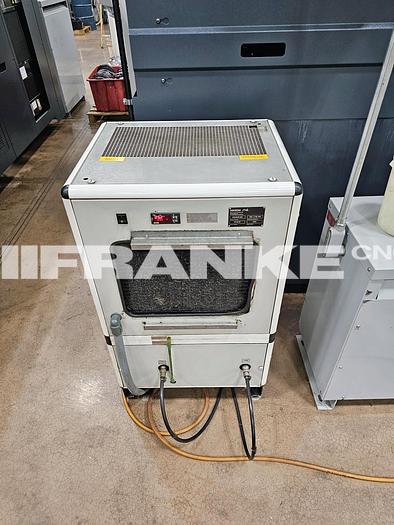

External spindle chiller

Direct measuring system HEIDENHAIN glass scales X/Y/Z, Encoders B,C

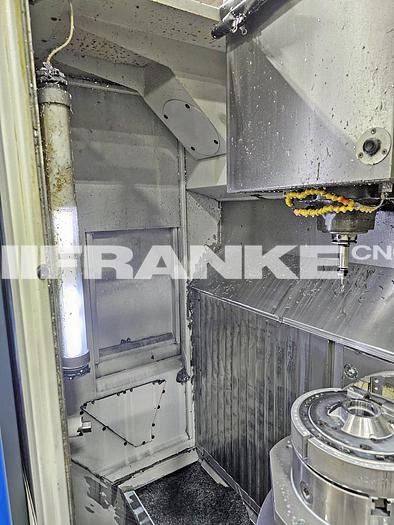

Completely enclosed machine cabin

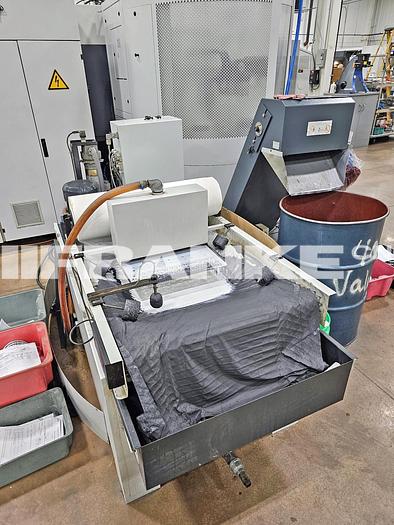

172 gallon (650 l) band filter coolant tank with micro paper filtration system

 -18-70 bar (260-1,000 PSI) manually adjustable high-pressure Coolant Thru the Spindle (CTS)

 -Flow rate 5.3 gallon/min (20 l/min)

BLUM laser tool measuring of tool length and diameter

Blow-off unit for laser measuring system

M&H Infrared Parts Measuring Touch Probe

FILTERMIST oil mist extractor

Tilting the working plane. This option activates the optional HEIDENHAIN software cycle 19

Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00004” (1 um) resolution positioning

Direct measuring system HEIDENHAIN rotary encoders B/C 0.00004” (1 um) resolution positioning
