2014 +GF+ MIKRON HPM 450U 5-Axis with 120 ATC and 7 x pallets

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION:

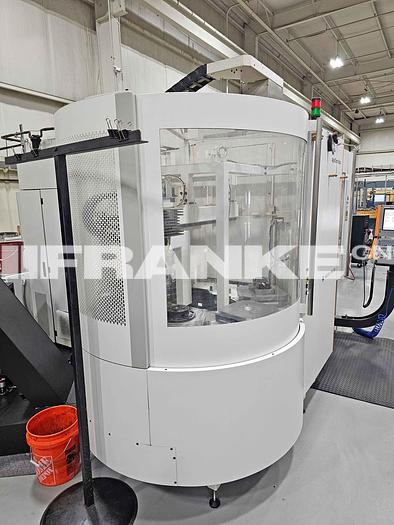

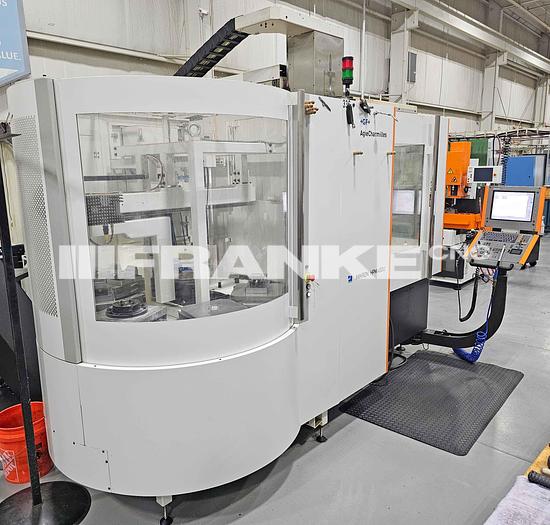

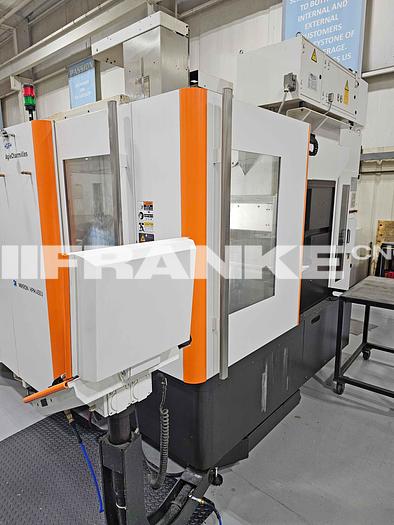

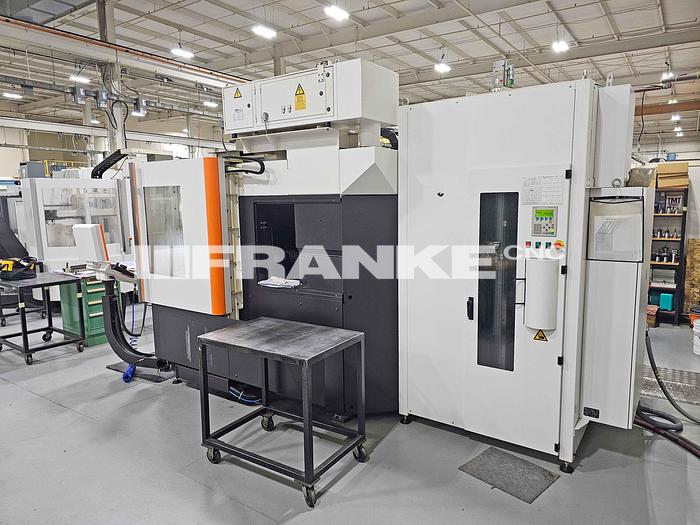

Used 2013/2014 +GF+ MIKRON HPM 450U 5-Axis Machining Center w/Tool Tower & Pallet Changer:

HISTORY
Machine was manufactured at +GF+ AgieCharmilles AG in Nidau, Switzerland 11/2013
Machine was first installed new in the USA on 1/20/2014

USAGE
Machine cut small exclusively aluminum injection & blow mold halves and injection cavities.

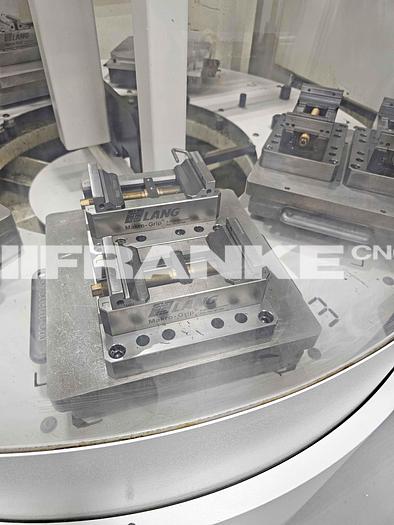

Largest vise used on the pallets was a 6” vise. Most pallets had 4” Lang vises on them.
Molds had very close tolerance requirements and challenging mold geometries.
Molds were produced for the food and beverage, personal care, and healthcare markets.

CONTROL

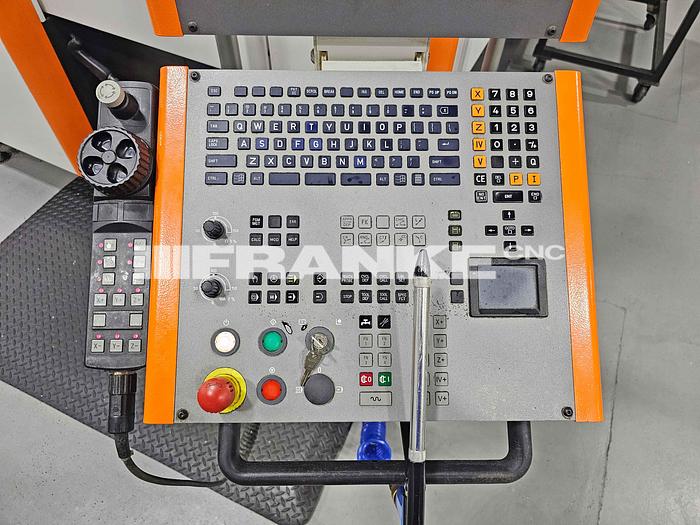

HEIDENHAIN iTNC 530 with Ethernet and electronic handwheel for part setup

WORKING RANGE
Longitudinal X-Axis.....................................   23.62" (600 mm)
Transverse Y-Axis............................................   17.72" (450 mm)
Vertical Z-Axis.........................................   17.72" (450 mm)
Maximum Workpiece Size……17.72” (450 mm) diameter x 17.72” (450 mm) height x 330 lbs (150 kg)
B-Axis (Tilt).......................................   -120 / +45 degrees
C-Axis (Rotary)........................................   n x 360 degrees
Number of simultaneous axis...........................   5/5 simultaneous

FEED DRIVE
Drive: Ballscrews in X,Y,Z-axis
Drive: Direct Drive Torque Motors in B and C-axis
Rapid Traverse X/Y/Z...................................   866 IPM (22 m/min)
Table Rapid Speed B-Axis (Tilt)......................................   50 rpm
Table Rapid Speed C-Axis (Rotary)....................................   140 rpm !
Maximum Acceleration X/Y/Z.....................................   up to 5 m/sec2

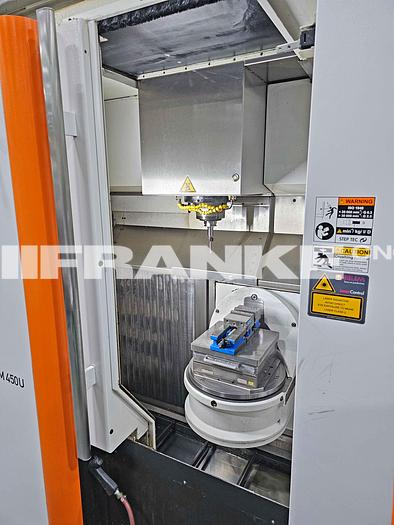

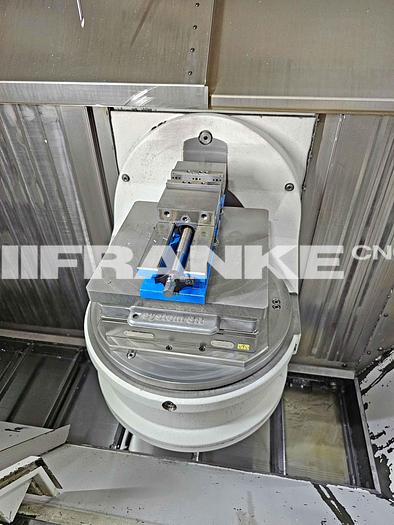

DIRECT DRIVE TORQUE MOTOR RTT (ROTARY TILT TABLE)
Pallet Clamping Surface..11.02" x 11.02” (280 x 280 mm) or 13.78” x 13.78” (350 x 350 mm) pallet sizes
Maximum workpiece weight (manual loading).............   330 lbs (150 kg)
Maximum workpiece size (manual loading)………….17.72” diameter x 17.72” height (450 mm x 450 mm)
Pallet type this machine and pallet changer are equipped for.............   System 3R Dynafix pallets
Number of pallet stations pallet changer is equipped with……7 x pallet stations
With hydraulic clamping in turning and swivelling axis
All feed motors are liquid-cooled
Direct measuring system HEIDENHAIN rotary encoders 0.00004” (1 um) resolution

AUTOMATION
BLUM laser tool measuring system
M&H Infrared touch probe
system 3R Dynafix automatic pallet changer with 7 x pallet stations

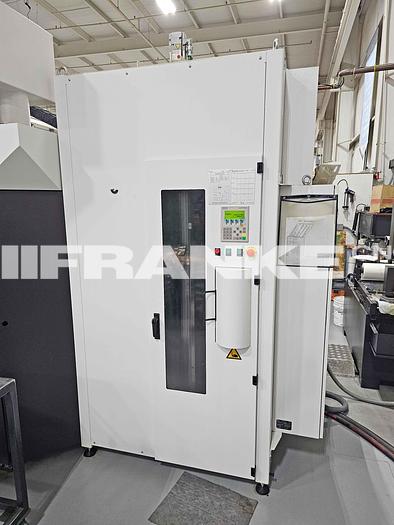

120 POSITION TOOL TOWER
This is an external freestanding 120 position tool tower.  The tools are loaded through a gate to be stored in the multi-story rack system.  An integrated control system manages the magazine pockets.  For a tool change, the tool is picked up by a machine-specific handling unit and transferred to the spindle hand-over position parallel to processing time.  There the tool is picked up by the spindle.

Number of magazine places……………………….120 positions
Spindle taper…………………………………………HSK-A63
Maximum tool diameter……………………………..3.15” (80 mm)
Maximum tool diameter with unoccupied adjacent positions..4.92” (125 mm)
Maximum tool length…………………………………10.6” (270 mm)
Maximum permitted tool weight……………………13.2 lb (6 kg)
Number of pockets for tool length up to 10.6” (270 mm)…70
Number of pockets for tool length up to 6.3” (160 mm)…..50

WEIGHT
Including pallet changer...........   Approximately 16,976 lbs (7,700 kg)
Machine base.......................   Polymer concrete (man made granite)

STEP-TEC SWISS MADE SPINDLE
Spindle taper..................................................   HSK-A63
Spindle RPM.................................................   100-20,000 rpm
Spindle power...................................   40 HP (30 kW)
Spindle torque 40% ED...............................   67 Ft/Lb (91 Nm)
Maximum tool diameter……………………..3” (80 mm)
Maximum tool length from the spindle nose….13.75” (350 mm)
Maximum tool weight…………………………..13.26 lbs (6 kg)

EQUIPPED WITH:

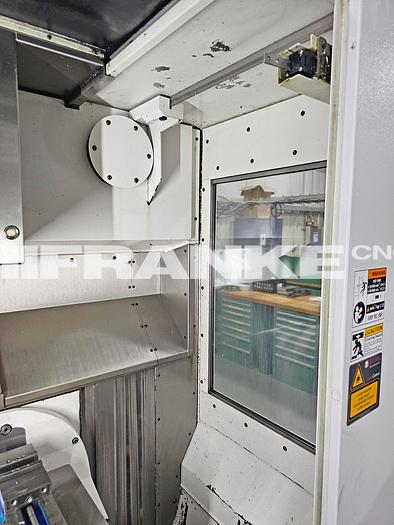

Complete machine enclosure
Oil mist extraction system
Pallet changer Dynafix

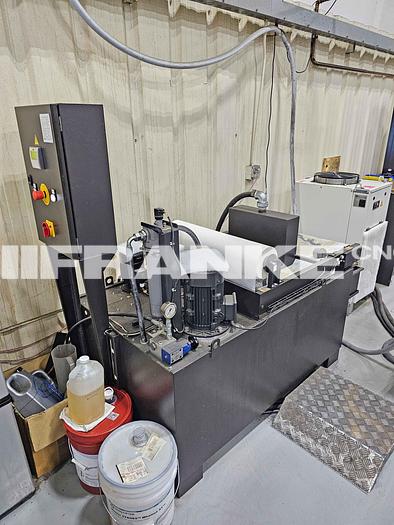

172 gallon (650 l) band filter coolant tank with micro paper filtration system
  -18-70 bar (260-1,000 PSI) manually adjustable high-pressure Coolant Thru the Spindle (CTS)
  -Flow rate 5.3 gallon/min (20 l/min)

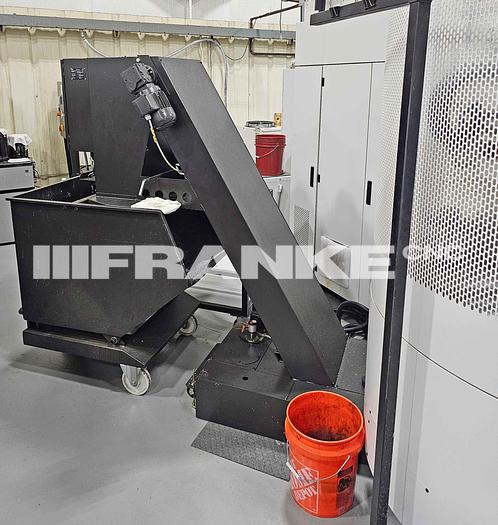

Chip conveyor for higher demands for aluminum machining
Spray Gun
M&H Infrared touch probe
BLUM laser tool measuring system
Blow-off unit for laser measuring system
Beacon
Oil mist spray unit
Tilting the working plane. This option activates the optional Heidenhain software cycle 19
Direct measuring system HEIDENHAIN glass scales X/Y/Z 0.00004” (1 um) resolution positioning
Direct measuring system HEIDENHAIN rotary encoders B/C 0.00004” (1 um) resolution positioning

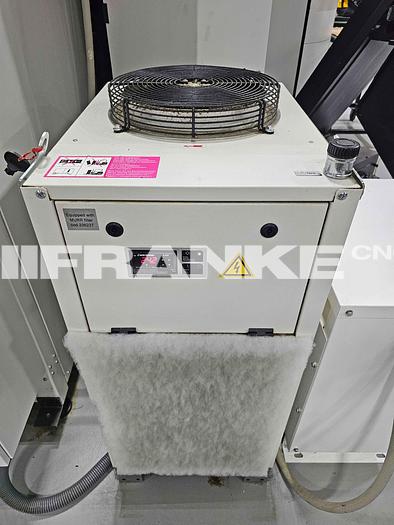

External spindle chiller

To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Purchase Point is Jackson, Wisconsin 53037
