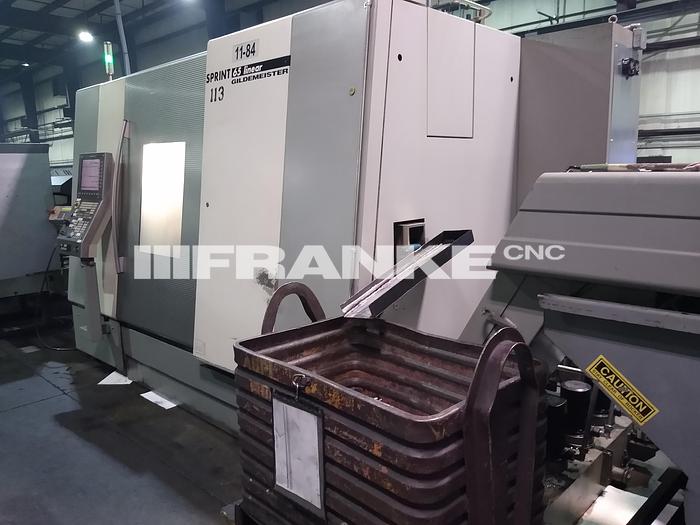

2006 DMG MORI SPRINT 65 linear 10-Axes lathe

2006 DMG MORI SPRINT 65 linear 10-Axes lathe

orCall +1 262-320-3399

Description

Inventory Number: 064486

Subject to availability, and terms and conditions of FRANKE CNC sales agreement, we offer for your consideration:

The SPRINT 65 linear design, with its massive base and 55 degree slanted bed, ensures the best chip disposal possible, due to the durability of the machine. The most complex milling operations can be performed by the standard equipped water-cooled spindle motors with hydraulic collet fittings and the three servo turret heads and driven tools with 23.1 ft/lbs torque and a Y-axis. The Y-axis, integrated into slide 3 and designed with 90 degree angles, guarantees excellent strength. The linear drive on this slide leads to the highest repeat accuracy and process safety.

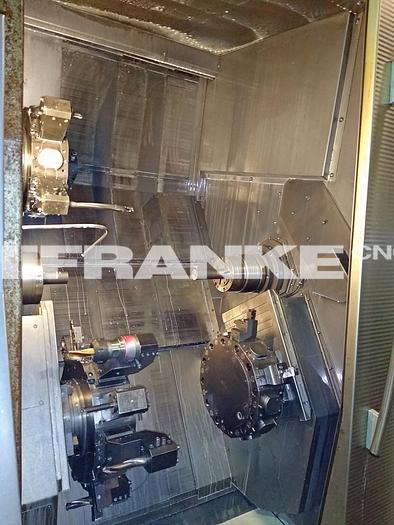

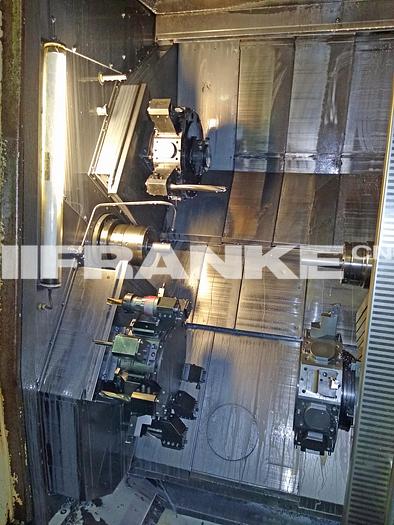

The work area design of the SPRINT 65 linear features a Y-axis on both sides and 36 driven tools.


Equipped With:

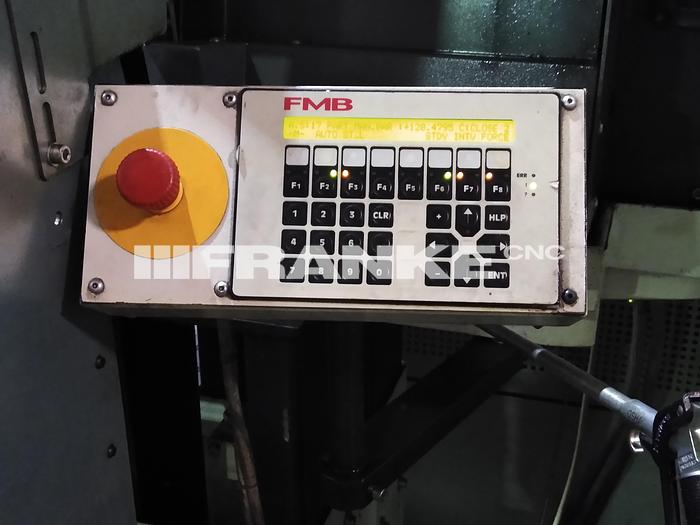

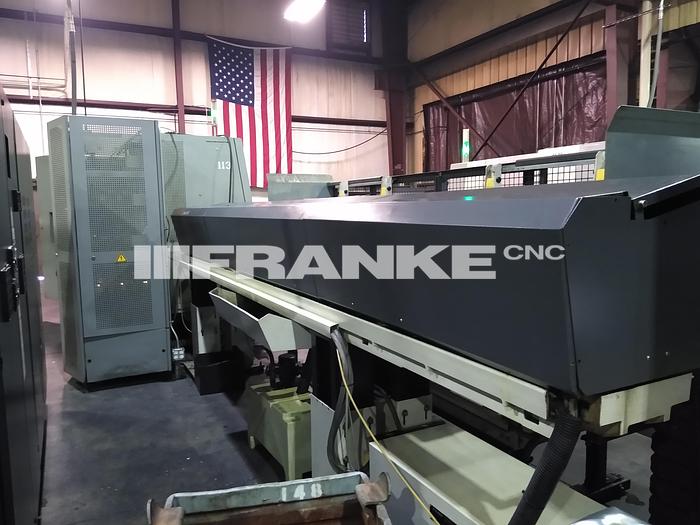

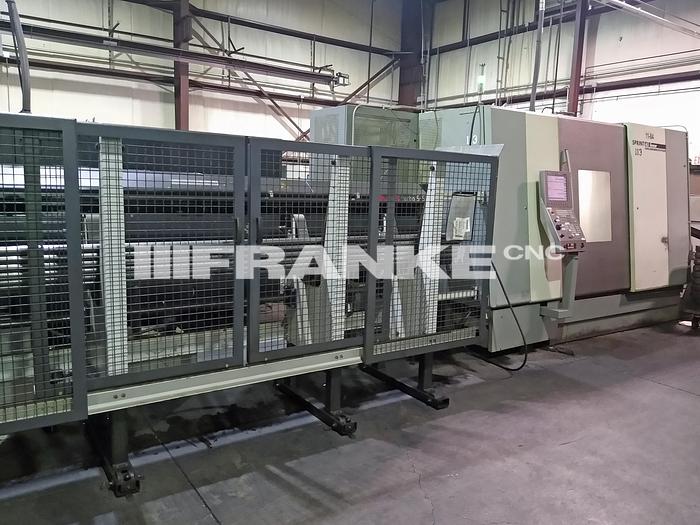

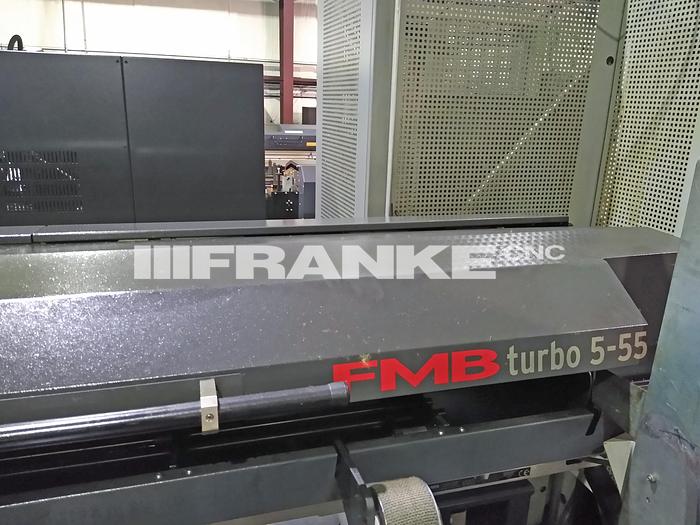

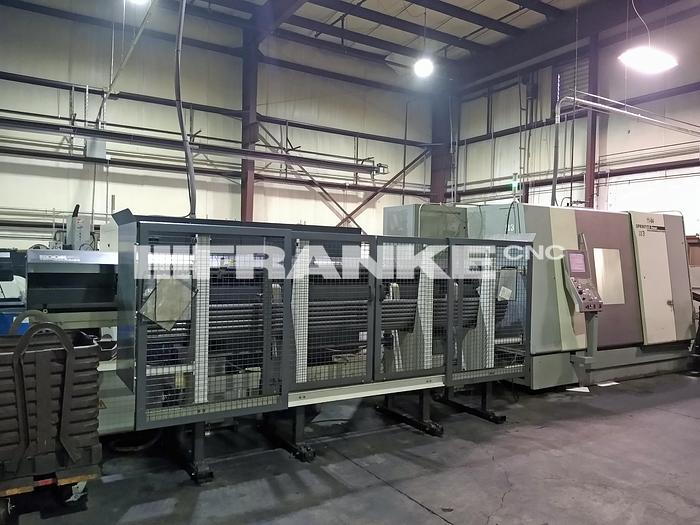

EDGE Technologies bar feeder

Chip conveyor

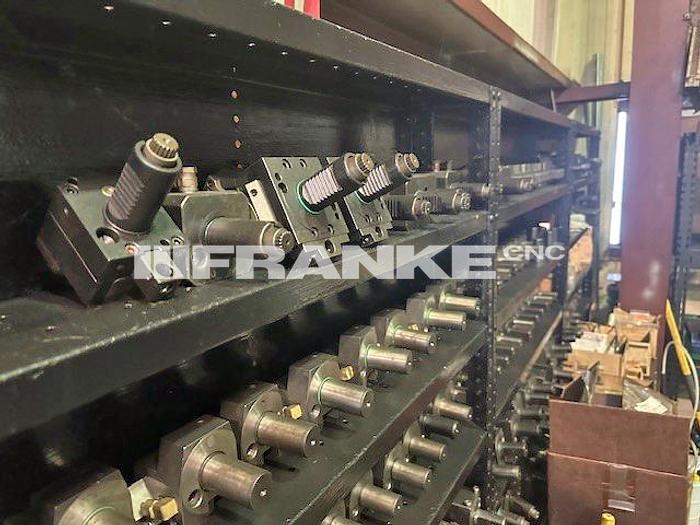

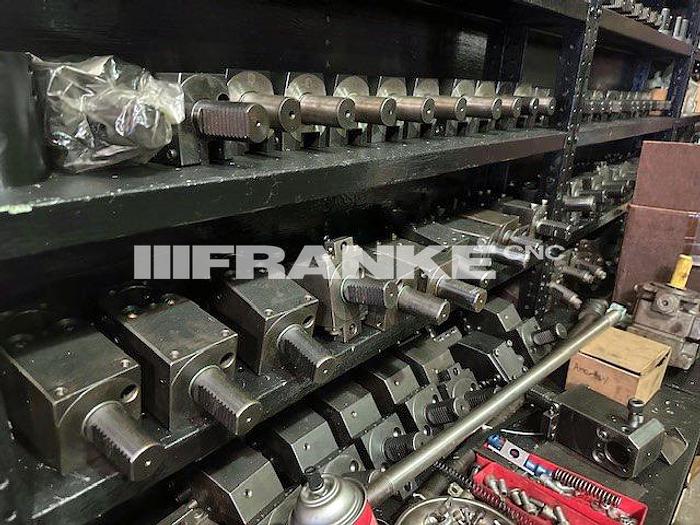

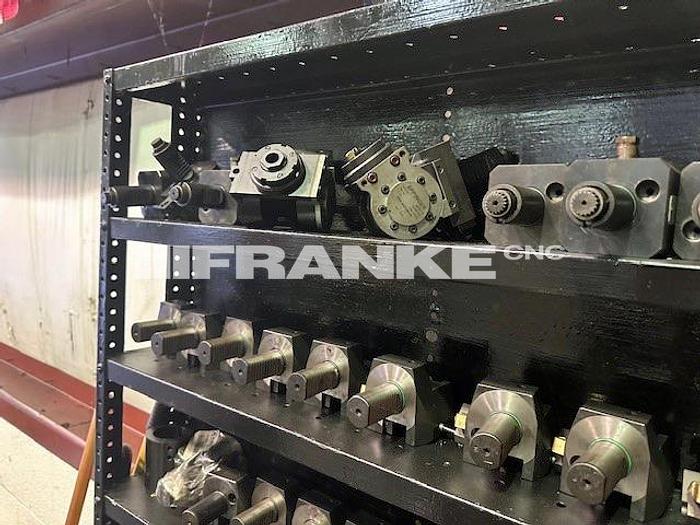

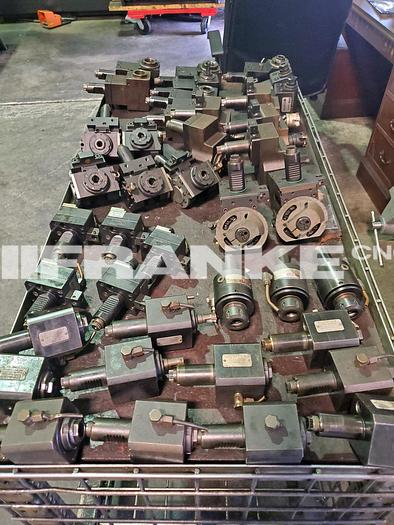

Miscellaneous live tool holders


Price quoted in United States Dollars
Price quoted is FOB Origin

To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.


Specifications

ManufacturerDMG MORI
ModelGILDEMEISTER SPRINT 65 linear
Year2006
ConditionUsed
Stock Number064486
Axes:8 + 2
Main spindle maximum bar diameter:2.6" (2.8")
Main spindle maximum rotational speed, main drive:5,000 rpm
Main spindle chuck diameter:6.9"
Main spindle spindle nose:5.5"
Main spindle power:29.5 hp
Counter spindle maximum bar diameter:1.7"
Counter spindle maximum rotational speed, main drive:5,000 rpm
Counter spindle chuck diameter:6.9"
Counter spindle spindle nose:5.5"
Counter spindle power:22.8 hp
Rapid traverse of the axes:1,181.1 ipm
Axis acceleration:196.9 in/s-2
W2-axis stroke (counter spindle)27.2"
X1-axis stroke:6.5"
Z1-axis stroke:8.7"
X2-axis stroke:6.5"
Z2-axis stroke:5.9"
X3-axis stroke:6.5"
Z3-axis stroke:25.6"
Y3-axis stroke:3.1" (-2.0/+1.2)
Number of turrets:3
Tool stations (per turret):12
Driven stations (per turret):12
Diameter of the tool fitting (DIN 69880):1.2"
Maximum rotational speed of driven tools:4,500 rpm
Maximum output (100%-25%):3.4 hp/8.0 hp

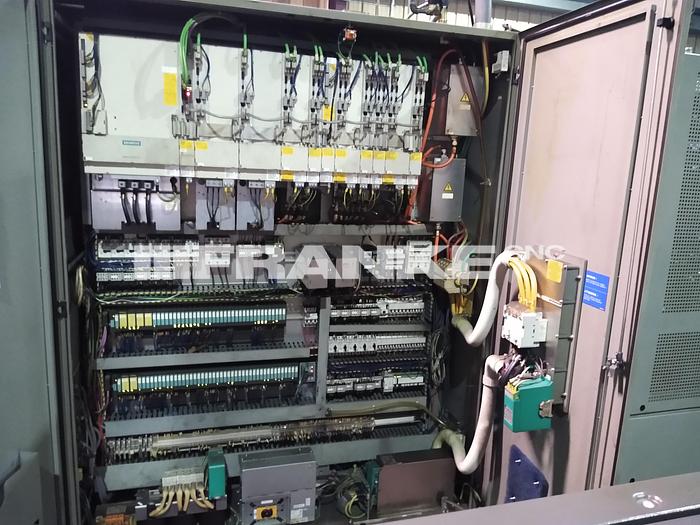

CNC Control:SIEMENS 840D powerline 3D
