2011/12 +GF+ MIKRON UCP 600 Vario 5-Axis VMC with 7 station pallet changer
2011/12 +GF+ MIKRON UCP 600 Vario 5-Axis VMC with 7 station pallet changer
Description
Machine was manufactured at +GF+ in Nidau, Switzerland 6/2011
Machine was first installed new 7/2012
Equipped With:

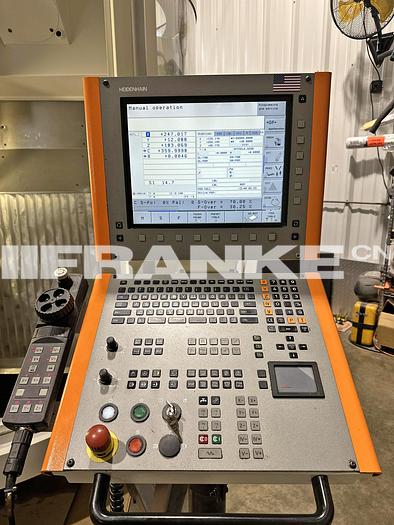

HEIDENHAIN iTNC 530 control with the following software options:
Tilting the workplane
Manual conversational format
Manual DIN/ISO programming
"APS" option (Advanced Process System)
Extended "APS" option
"ITC" option (Intelligent Thermal Control)
"ITC-5X" option (Intelligent Thermal Control for 5 axis)
Manual touch cycles
Manual pilot SMART.NC HEIDENHAIN
HEIDENHAIN electronic handwheel for part setup
HEIDENHAIN glass scales X/Y/Z direct measuring system
HEIDENHAIN rotary encoders B/C direct measuring system
Completely enclosed machine cabin
External spindle chiller
Chip conveyor for higher demands
Band Filter System 650 l (172 gallon) with paper band micro filter
Adjustable 18-70 bar (261 psi-1,015 psi) CTS Coolant Thru the Spindle
Spray gun cleaning pistol
Touch probe infrared
Laser tool measuring of tool length & diameter and broken tool detection
Beacon signal light
7 station Pallet Changer for Dynafix pallets

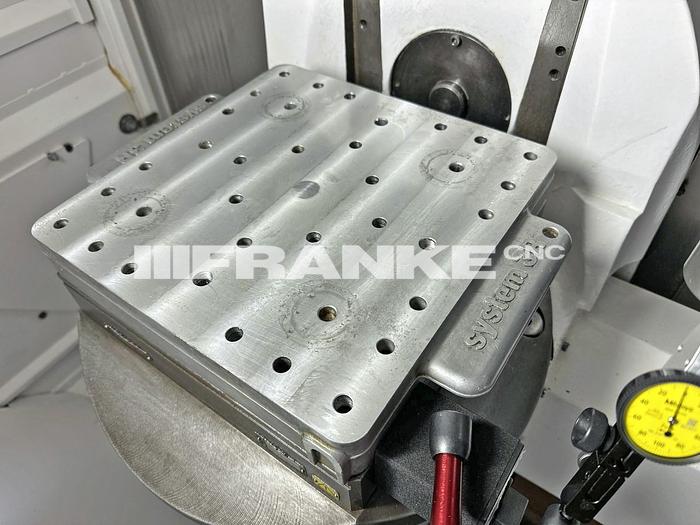

7 x used System 3R Dynafix 280 mm (11.02") x 280 mm (11.02") pallets
Tool blow-off unit
Machine is offered subject to availability and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Specifications
| Manufacturer | +GF+ MIKRON |
| Model | UCP 600 Vario |
| Year | 2011 |
| Condition | Used |
| Stock Number | 064497 |
| Working Range Longitudinal, X | 600 mm (23.6") |
| Working Range Transverse, Y | 450 mm (17.7") |
| Working Range Vertical, Z | 450 mm (17.7") |
| Maximum part size (Single part production) | 450 mm (17.7") diameter x 450 mm (17.7") height x 200 kg (441 lbs) |
| Maximum part size (Palletchanger automated production) | 350 mm (13.8") diameter x 350 mm (13.8") height x 90 kg (198 lbs) |
| Rotary Tilting Table B-Axis (Tilt) | -115/+30 degrees |
| B-Axis Rapid Speed | 25 rpm |
| Rotary Tilting Table C-Axis (Rotary) | n x 360 degrees |
| C-Axis Rapid Speed | 33 rpm |
| Number of simultaneous axis | 5/5 simultaneous contour machining |
| Pallet versions | System 3R Dynafix 280 mm (11.02") x 280 mm (11.02") or 350 mm (13.8") x 350 mm (13.8" |
| Number of pallet stations this machine is equipped with | 7 x (Dynafix) |
| Maximum weight on table | 200 kg (441 lbs) manual loading or 90 kg (198 lbs) automatic loading |
| Feed Rate X/Y/Z | 15 m/min (590 IPM) |
| Rapid Speed X/Y/Z | 22 m/min (866 IPM) |
| Step-Tec AG Swiss Made Spindle Taper | HSK-A63 |
| Spindle RPM | 20,000 rpm |
| Spindle Power | 30 kW (40.2 hp) |
| Spindle Torque | 91 Nm (67.1 ft/lb) |
| Internal Tool Changer | 60 position |
| Machine Weight | 7,700 kg (16,976 lbs) |
| Machine Base | Polymer (man made granite) |
