Description
The DMC 80U is a universal machining center so it's really two machines in one:
-horizontal machining center (5-Axis)
-vertical machining center (5-Axis)

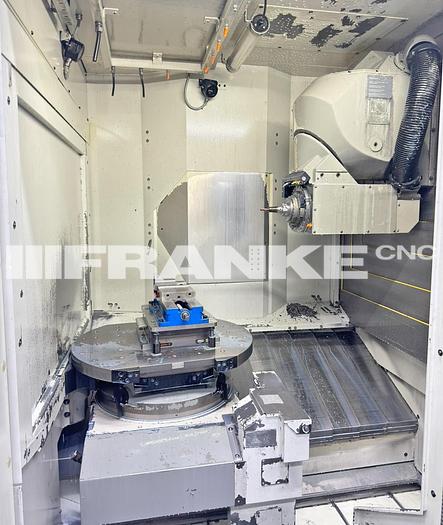

It is equipped with a universal swivel articulating milling head which swivels from vertical to horizontal and horizontal to vertical which allows for 5 sided 5 axis simultaneous machining with one workpiece clamping.
Equipped With:
HEIDENHAIN iTNC 530 CNC control with electronic handwheel
40 bar (580 PSI) high pressure coolant thru the spindle

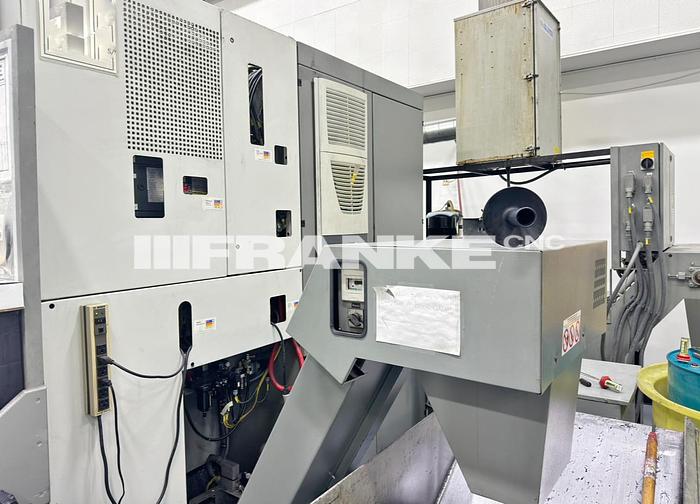

Chip conveyor
RENISHAW infrared touch probe
BLUM laser tool measuring of tool length and diameter

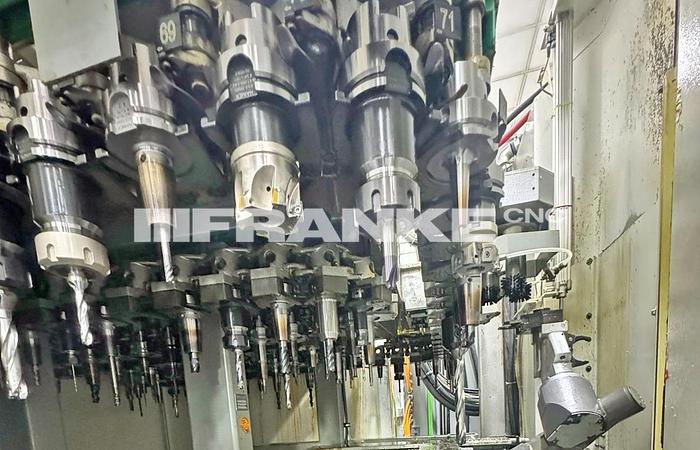

120 station automatic tool changer
2 station pallet changer
New spindle installed in 2023

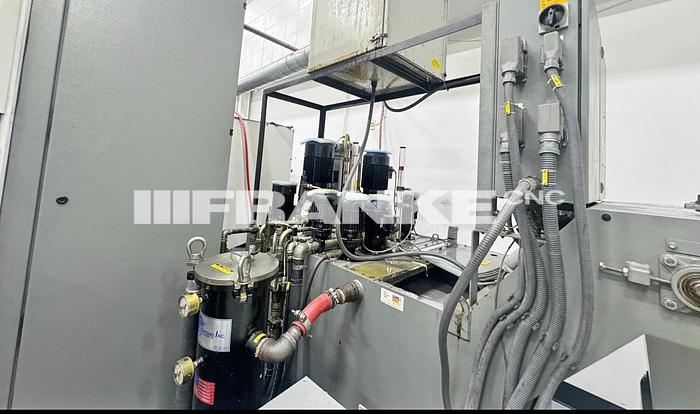

New chiller installed in 2023
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specifications
| Manufacturer | DMG MORI |
| Model | DECKEL MAHO DMC 80U hi-dyn |
| Year | 2004 |
| Condition | Used |
| Stock Number | 064504 |
| Working range X axis (longitudinal) | 31.5" |
| Working range Y axis (transversal) | 27.6" |
| Working range Z axis (vertical) | 23.6" |
| Maximum workpiece size | 770 mm (30.3") diameter x 890 mm (35.04") height x 1,760 lbs |

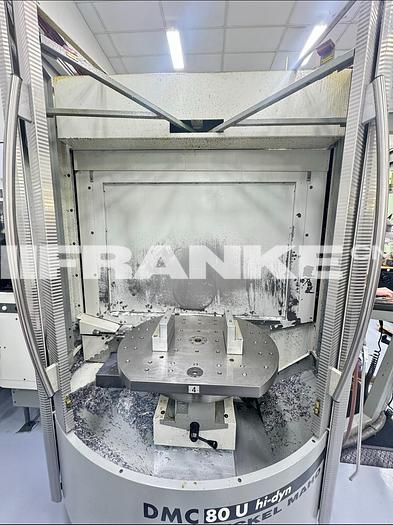

| Tables | 2 pallets |
| NC rotary table clamping surface | 31.5" diameter x 24.8" |
| NC rotary table maximum table load | 1,760 lbs |
| 5th axis milling spindle | Controlled B-axis |
| B-axis swivel range | 0-187 degrees |
| Main spindle drive type | AC controlled digital |
| Spindle power 40% duty cycle | 37 hp |
| Spindle power 100% duty cycle | 25 hp |
| Spindle speed range | 20-18,000 rpm |
| Spindle acceleration/deceleration | 2.2 seconds |
| Number of gear steps | None |
| Maximum spindle torque | 89 ft lbs |
| Spindle bearing diameter front/rear | 3.15"/2.17" |
| Spindle taper | HSK63 |
| Vertical milling head with B-axis Hor.-Vertical automatic swivel | 2 seconds |
| Feed drives type | Brushless AC digital |
| Feed rate (x-y-z) | 196.8 ft/min |
| Rapid feed (x-y-z) | 196.8 ft/min |
| Acceleration (x-y-z) | 0.4/0.4/0.6 g |
| Feed power (x-y-z) | 2,250 lbs |
| Thread spindle x/y/z (ball) | 1.5 x 0.8 inch |
| Tool magazine type | Horizontal chain |
| Number of pockets/weight | 120 position tool changer/22 lbs |
| Maximum tool diameter without free pockets | 3.1" |
| Maximum tool diameter with free pockets | 6.3" |
| Maximum tool length | 13.8" |
| Tool change time | Horizontal 5.5 seconds |
| Pallet change time | 13 seconds |
| Flood coolant pump output external jets | 10.5 gal/min |
| Pump output chip flushing system | 48 gal/min |
| Coolant tank capacity | 240 gallons |
| CTS Internal Coolant Supply pump output | 6 gal/min |
| CTS Internal Coolant Supply pressure | 40 bar (580 PSI) coolant thru the spindle |
