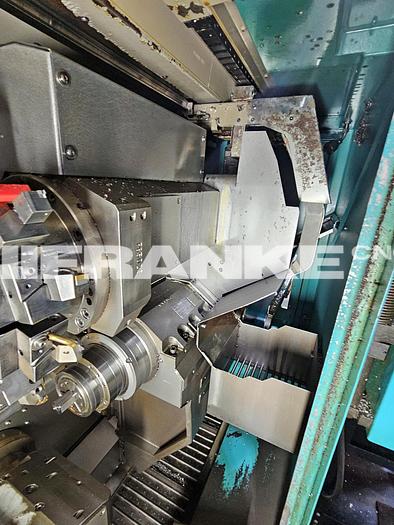

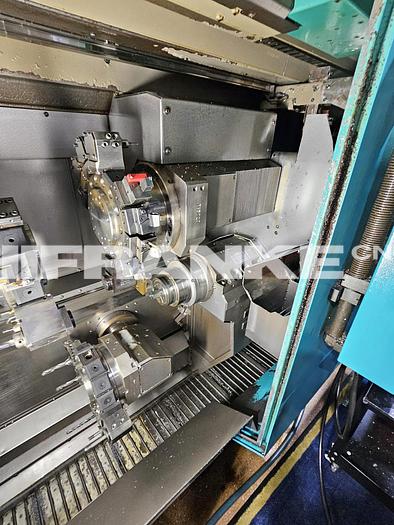

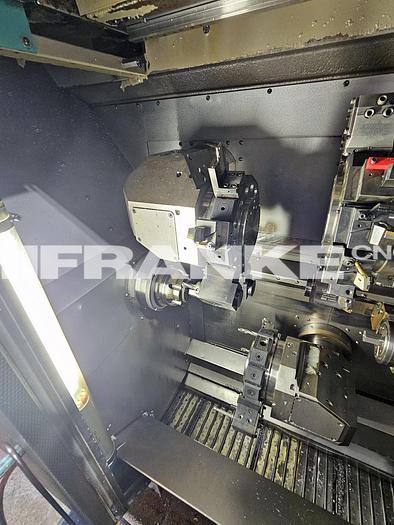

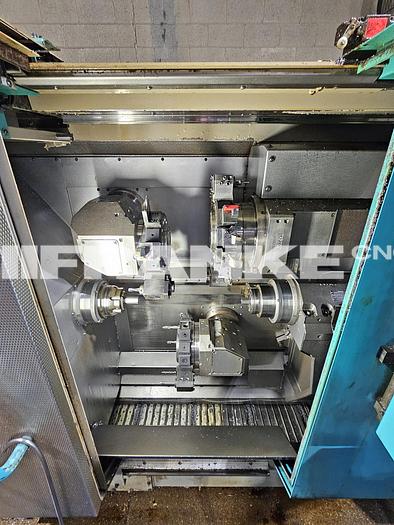

2008 INDEX C100 production turning machine for highly productive bar machining
2008 INDEX C100 production turning machine for highly productive bar machining
Description
Equipped With:

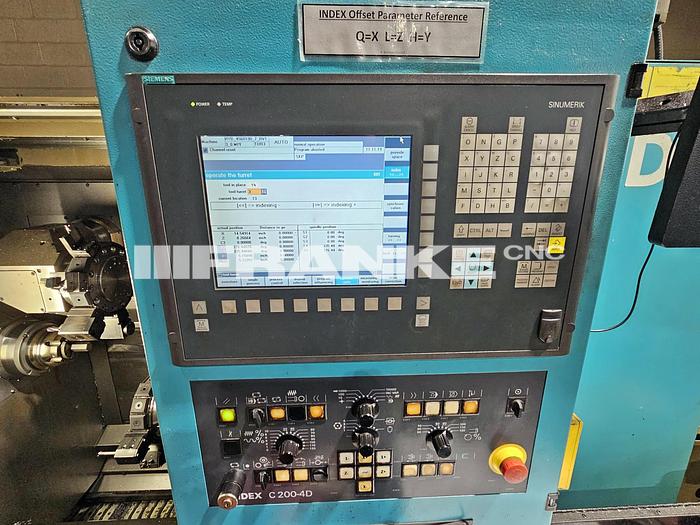

INDEX control system C200-4D with flat screen display
Chip conveyor
INDEX MBL 42/3700 bar loading magazine
External chiller system
KNOLL paper band filter unit
Collet chuck on main spindle
Collet chuck on counter spindle
Finished parts conveyor
Three (3) used live tool holders with the machine
Preparation for the connection of a coolant mist extraction and filter system
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specifications
| Manufacturer | INDEX |
| Model | C100 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 064507 |
| Main spindle bar capacity | 42 mm |
| Main spindle speed max. | 7,000 rpm |
| Main spindle power 100%/40% | 22/29 kW |
| Main spindle torque max. 100%/40% | 50/65 Nm |
| Main spindle C axis resolution | 0.00014 degree |
| Counter spindle bar capacity | 42 mm |
| Counter spindle speed max. | 7,000 rpm |
| Counter spindle power 100%/40% | 16.5/19 kW |
| Counter spindle torque max. 100%/40% | 32/43 Nm |
| Counter spindle slide travel Z | 500 mm |
| Counter spindle rapid traverse | 60 m/min |
| Counter spindle C axis resolution | 0.00014 degree |
| Tool turrets 1,2,3 number of stations | 14 stations VDI20 mounting cylindrical shank D20x40 |
| Tool turrets 1,2,3 speed max. | 8,000 rpm |
| Tool turrets 1,2,3 power at 25% | 4.2 kW |
| Tool turrets 1,2,3 torque at 25% | 11 Nm |
| Tool carrier 1 slide travel X, rapid traverse | 70 mm/60 m/min |
| Tool carrier 1 slide travel Y, rapid traverse | 70 mm/15 m/min |
| Tool carrier 1 slide travel Z, rapid traverse | 250 mm/60 m/min |
| Tool carrier 2 slide travel X, rapid traverse | 70 mm/60 m/min |
| Tool carrier 2 slide travel Y, rapid traverse | 70 mm/15 m/min |
| Tool carrier 2 slide travel Z, rapid traverse | 400 mm/60 m/min |
| Tool carrier 3 slide travel X, rapid traverse | 125 mm/35 m/min |
| Gantry-type removal unit workpiece weight max. | 2 kg |
