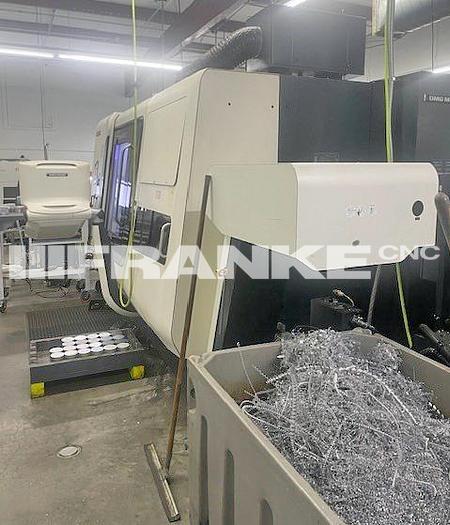

2015 DMG MORI GILDEMEISTER CTX beta 800 TC 5-Axis Turn-Mill Center
2015 DMG MORI GILDEMEISTER CTX beta 800 TC 5-Axis Turn-Mill Center
Description
Machine was manufactured at Gildemeister Drehmaschinen GmbH in Bielefeld, Germany

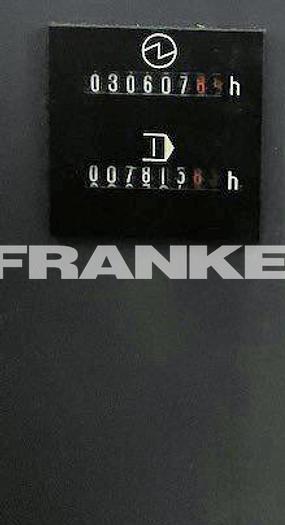

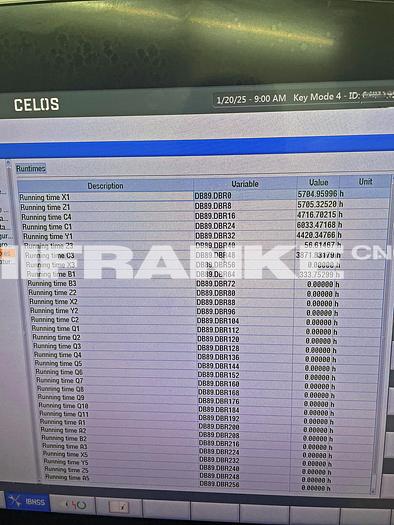

Approximately only 7,815 program run time hours over the LIFE of the machine:
(<4 years of use on average, on a 1 shift basis)
Equipped With:

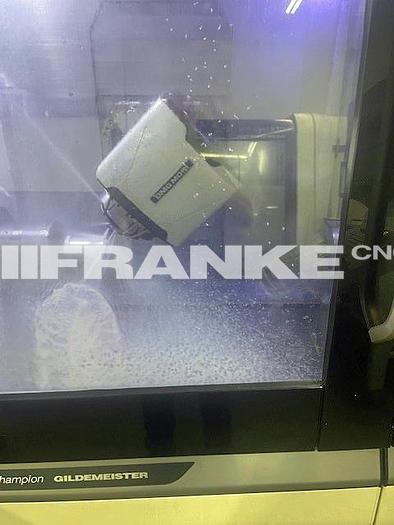

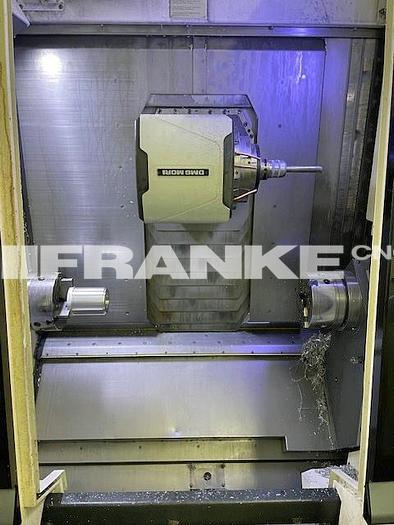

-12,000 rpm. compact master spindle, Capto C6, Thru Spindle Coolant (CTS)
-48 position ATC

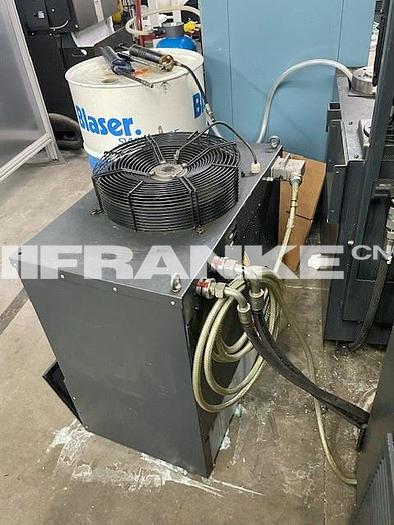

-50 Gallon high pressure coolant tank system with paper band micro filter
-CELOS from DMG MORI on a Siemens 840D solutionline control with the ShopTurn 3G: ERGOline panel and a 21.5" multi-touch display
-Gear Hobbing Option
-Touch Probe
-Transformer
-Mist Collector

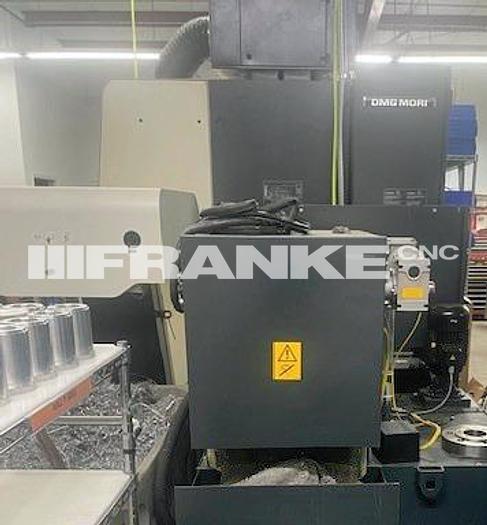

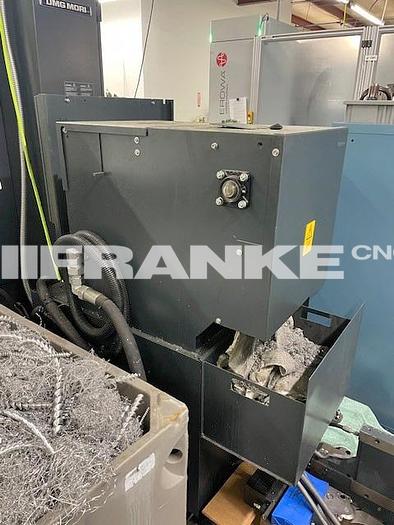

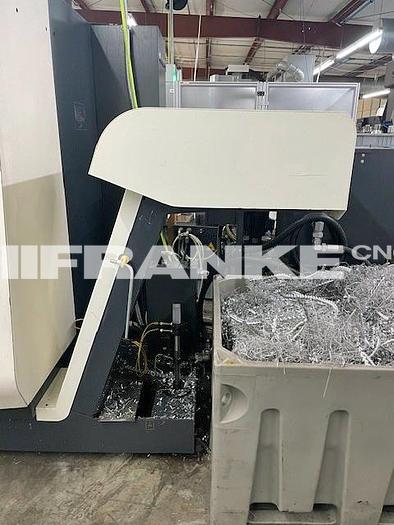

-Chip conveyor
-Miscellaneous collet tool holders
-PH Horn case with miscellaneous tooling

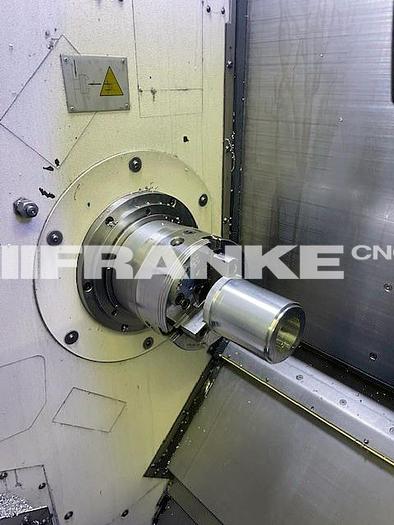

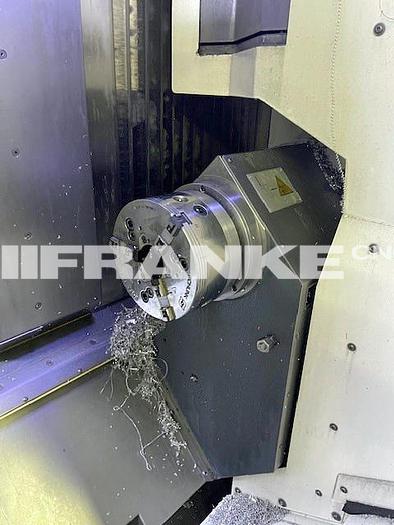

-SCHUNK ROTA THW 185 chucks on main and sub spindles with quick change jaws
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specifications
| Manufacturer | DMG MORI |
| Model | GILDEMEISTER CTX beta 800 TC |
| Year | 2015 |
| Condition | Used |
| Stock Number | 064517 |
| Swing diameter, max./Cutting diameter, max. | 19.7" |
| Workpiece length, max. | 31.5" |
| Distance (main spindle-counter spindle)/without chuck | 40.2" |
| Main spindle (standard) | ISM 76 |
| Main spindle integrated spindle motor (ISM) with C-axis (0.001 degree) | 5,000 rpm. |
| Main spindle drive power/Torque (40% DC) | 45.6 hp.//280.3 ft./lbs. |
| Spindle bearing diameter (front bearing) | 5.1" |
| Draw tube inner diameter | 2.6" |
| Main spindle head (flat flange)/Chuck diameter, max. | 6.7 h5/12.4" |
| Counter spindle | ISM 52 |
| Counter spindle integrated spindle motor (ISM) with C-axis (0.001 degree) | 6,000 rpm. |
| Counter spindle drive power/Torque (40% DC) | 36.2 hp.//125.4 ft./lbs. |
| Counter spindle bearing diameter (front bearing) | 3.9" |
| Counter spindle draw tube inner diameter | 2.0" |
| Counter spindle head (flat flange)/Chuck diameter, max. | 5.5 h5/8.3" |
| Turning/milling spindle taper | Capto C6 |
| Turning/milling spindle speed | 12,000 rpm. |
| Turning/milling spindle Drive power/Torque (40% DC) | 29.5 hp.//88.5 ft./lbs. |
| B-axis Swivel range | +/- 110 degrees |
| B-axis Rapid traverse | 70 rpm. |
| Tools: Chain magazine ATC | 48 slots |
| Tool diameter, max (unoccupied/occupied slots) | 4.7"/3.1" diameter |
| Tool length, max. | 11.8" |
| Tool weight, max./Chip-to-chip time | 26.5 lbs./8.5 sec. |
| Slide for traveling column travel (X/Y/Z) | 18.9" (+18.5/-0.4)/+/- 3.9"/33.3" |
| Rapid traverse speed (X/Y/Z) | 1,417.3/1,574.8/1,574.8 ipm. |
| Feed force (X/Y/Z) (40% DC) | 2,248.1/1,686.1/2,248.1 lbf. |
| Slide for counter spindle Travel (Z) | 31.5" |
| Slide for counter spindle Rapid traverse speed (Z) | 1,574.8 ipm. |
| Slide for counter spindle Feed force (Z)/(40% DC) | 2,248.1 lbf. |
| Machine footprint (without chip conveyor) | 91.5 ft-2 |
| Discharge height (chip conveyor) | 50" |
| Machine Height | 90.6" |
| Machine Weight | 22,046.2 lbs. |
