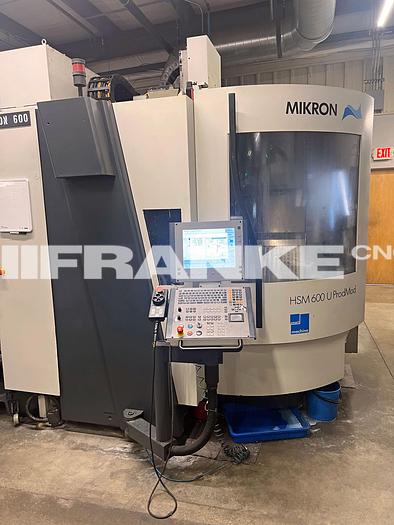

2005/8 +GF+ MIKRON HSM 600U ProdMod 5-Axis 220 ATC & 7 station pallet changer
2005/8 +GF+ MIKRON HSM 600U ProdMod 5-Axis 220 ATC & 7 station pallet changer
Description
Machine was manufactured at +GF+ in Nidau, Switzerland 7/2005.
Machine was sold as a DEMO machine and first installed new in the USA in 7/2008.
EQUIPPED WITH:

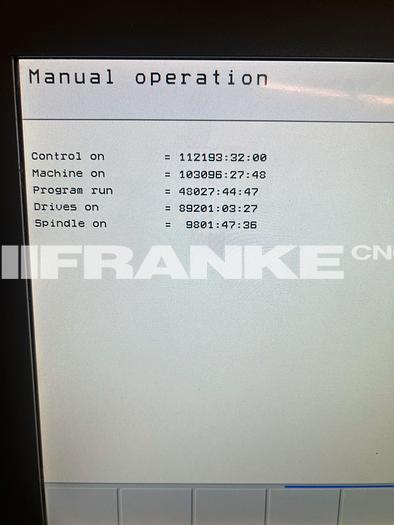

HEIDENHAIN iTNC 530 control with ethernet connection
Electronic handwheel for control for part setup

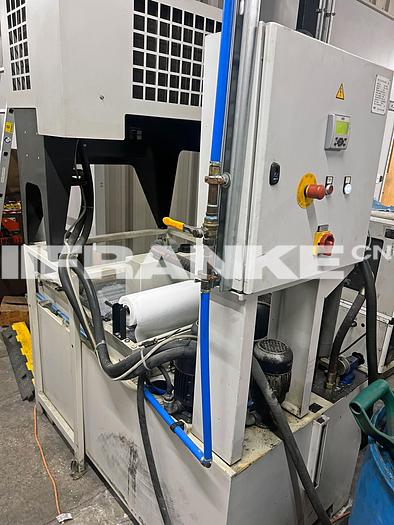

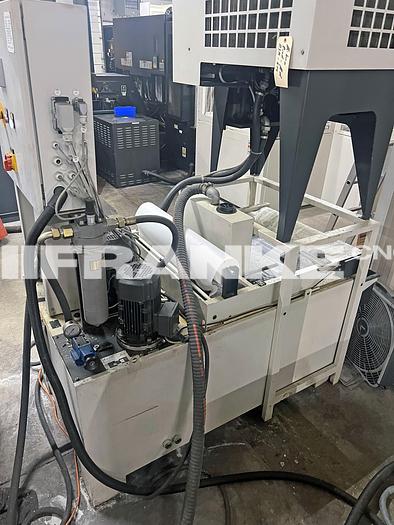

132 gallon (500 liters) coolant tank with paper band micro filtration system

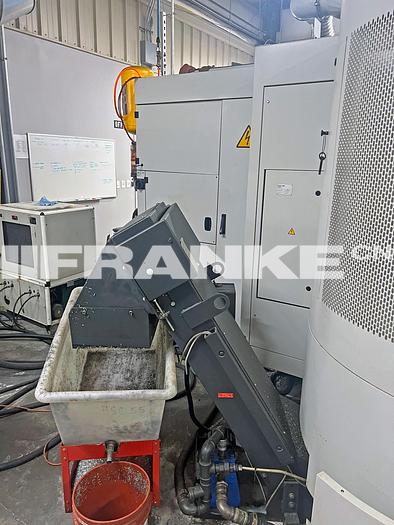

Chip conveyor
Spray gun
High pressure CTS (coolant thru the spindle) 20-70 bar (290-1,015 PSI) adjustable pressure
Direct measuring system HEIDENHAIN glass scales X/Y/Z
Direct measuring system HEIDENHAIN rotary encoders B/C axes
External spindle chiller

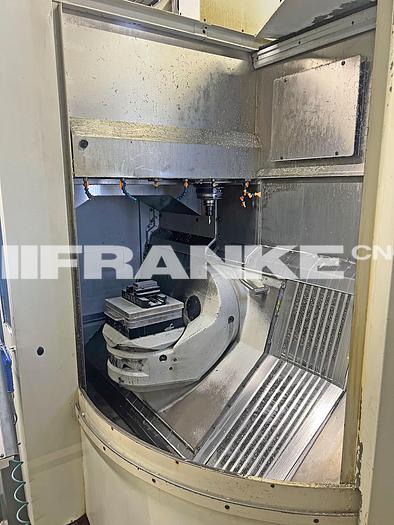

Direct drive torque motor SRT (swivel rotary table)

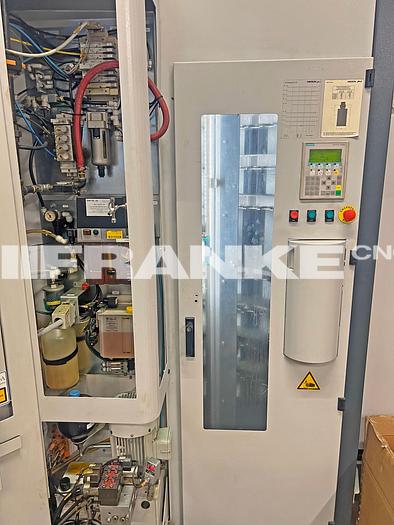

Hydraulic clamping in turning and swiveling axis
All feed motors are liquid cooled

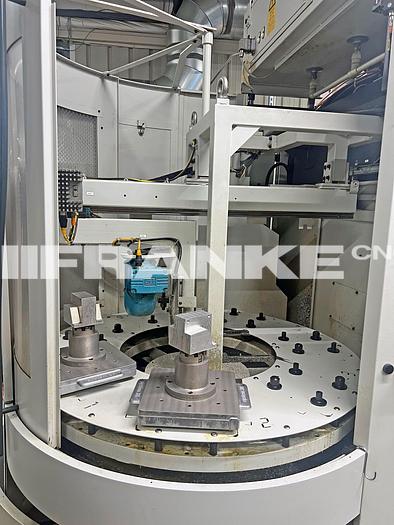

7 station Dynafix pallet changer
Laser tool length measuring of tool length & diameter and broken tool detection
M&H infrared parts measuring touch probe
Step-Tec Swiss made spindle
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is in USD.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Buyer is responsible for trucking.
Specifications
| Manufacturer | +GF+ MIKRON |
| Model | HSM 600U ProdMod |
| Year | 2005 |
| Condition | Used |
| Stock Number | 064524 |
| Working range longitudinal X-Axis | 31.5" (800 mm) (New X axis ball screw in 10/2021) |
| Working range cross Y-Axis | 23.6" (600 mm) (New Y axis ball screw in 11/2020) |
| Working range vertical Z-Axis | 19.7" (500 mm) |
| B-Axis (Swivel) | +30/-110 degrees |
| C-Axis (Rotary) | n x 360 degrees |
| Number of simultaneous axis | 5/5 simultaneous |
| Feed Rate X/Y/Z | 1,653 IPM (42 m/min) |
| Feed Rate B-Axis (Swivel) | 200 RPM ! |
| Feed Rate C-Axis (Rotary) | 360 RPM ! |
| Acceleration X/Y/Z | Up to 17 m/sec-2 |
| Direct drive torque motor SRT (Swivel Rotary Table) clamping surface | 11.02" x 11.02" (280 mm x 280 mm) Dynafix pallet size standard |
| Maximum clamping surface | 13.8" x 13.8" (350 mm x 350 mm) Dynafix pallet size possible |
| Maximum workpiece weight (manual loading) | 264 lbs (120 kg) |
| Maximum workpiece weight (automatic with pallet changer) | 198 lbs (90 kg) |
| Pallet type this machine is equipped for | System 3R Dynafix |
| Number of pallet stations in pallet changer | 7 pallet stations |

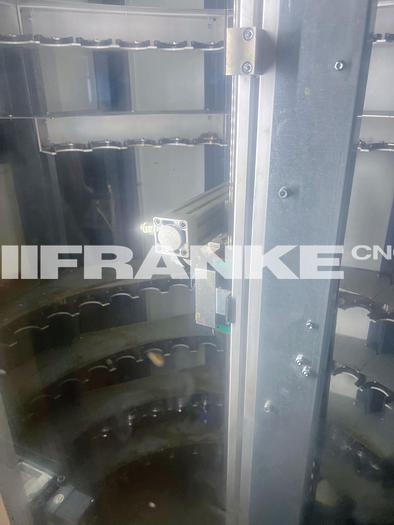

| Tool Tower automatic tool changer | 220 positions |
| Weight including pallet changer | Approximately 20,282 lbs (9,200 kg) |
| Machine base | Polymer concrete (man made granite) |
| Spindle taper | HSK A63 (new spindle in 4/2022) |
| Spindle RPM | 24,000 RPM |
| Spindle power 40% ED | 29.5 HP (22 kW) |
| Spindle torque 40% ED | 33.9 Ft/Lb (46 Nm) |
