2004 INDEX ABC production turning machine
2004 INDEX ABC production turning machine
or
Call +1 262-320-3399
Description
Equipped With:

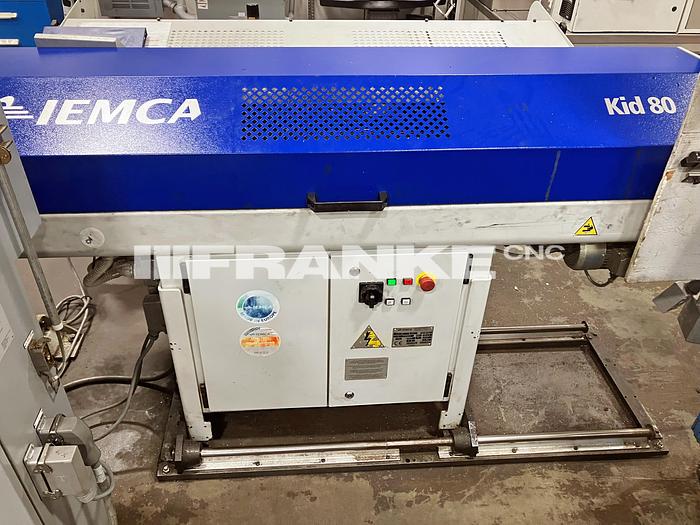

2016 IEMCA Kid 80 bar feeder. Maximum bar length 1,615 mm (5'4")

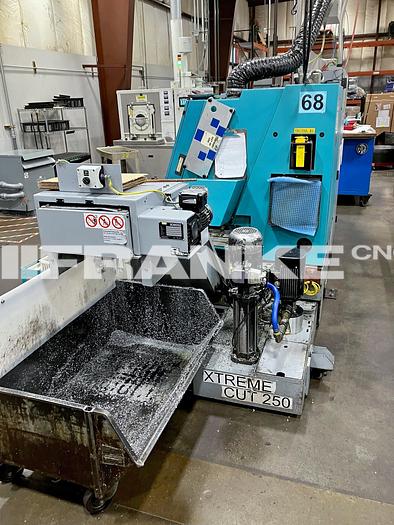

KNOLL chip conveyor and coolant system
Oil mist extractor
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Buyer is responsible for trucking.
Specifications
| Manufacturer | INDEX |
| Model | ABC |
| Year | 2004 |
| Condition | Used |
| Stock Number | 064530 |
| Machine weight | 6,395 lbs |
| Main spindle maximum speed | 5,000 rpm |
| Counter spindle maximum speed | 4,500 rpm |
| Back working with synchron | Yes |
| Live tools | Yes |
| Live tool maximum speed | 6,000 rpm |
| C-Axis | Yes |
| Y-Axis or B-Axis | No |
| Dedicated milling spindle | No |
| Number of spindles | 1 |
| Number of turrets | 2 |
| "W" serration turret | No |
| Total number of tools | 17 |
| Material type | Bar |
| Maximum bar diameter | 60 mm |
| Maximum part length | 280 mm |
| Steady rest | No |
| Oil or coolant | Coolant |
| VDI tool size | 25 |
| Tools per turret | 7/6 |
| Control | SIEMENS 840D |
| Rigid tapping | Yes |
| HMI SW version | 06.040.2.00 |
| Ejector or gantry | Ejector |
| Counter/Sub spindle clamping mechanism | Jaws (sync) |
| Materials run on this machine | ONLY aluminum over the life of machine |
