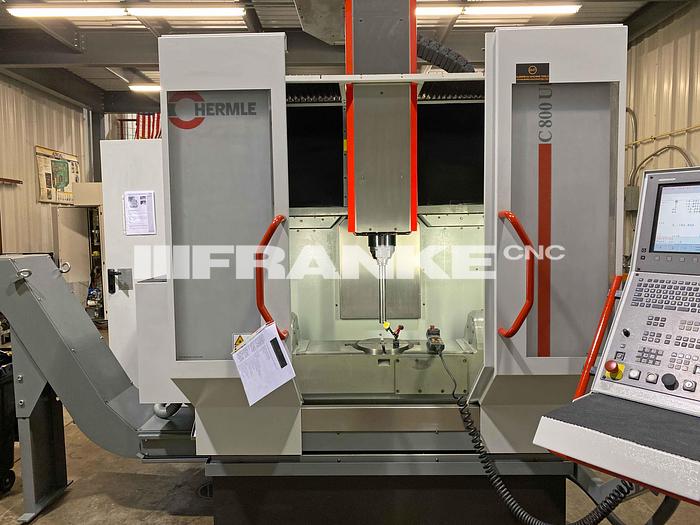

2003 HERMLE C800U Full 5-Axis Simultaneous VMC *new spindle *new chiller
2003 HERMLE C800U Full 5-Axis Simultaneous VMC *new spindle *new chiller
Description
EQUIPPED WITH:

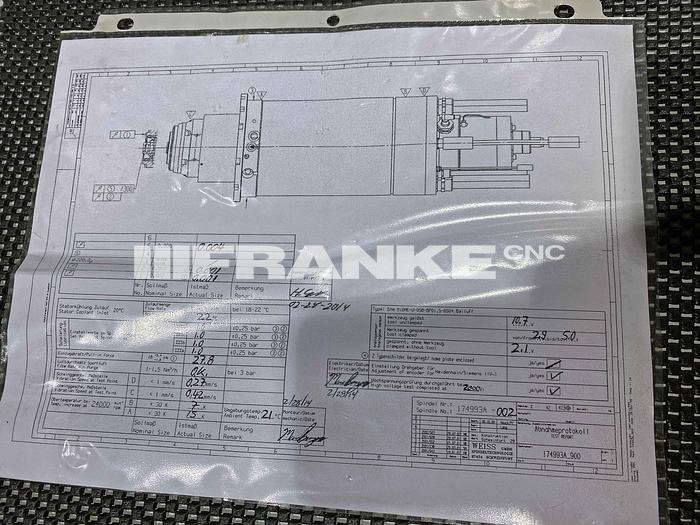

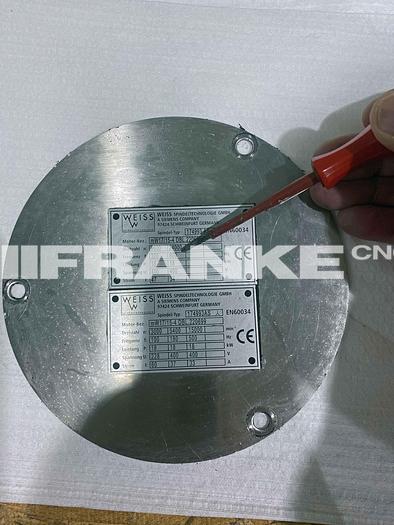

*New spindle & new spindle oil distribution valves installed by HERMLE 3/2021 at a cost of $70,380.54*
*New chiller installed by HERMLE 4/2021 at a cost of $7,321.02*

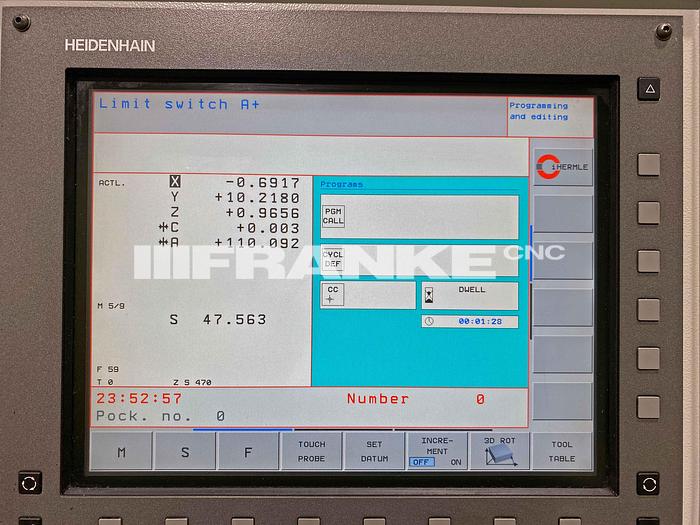

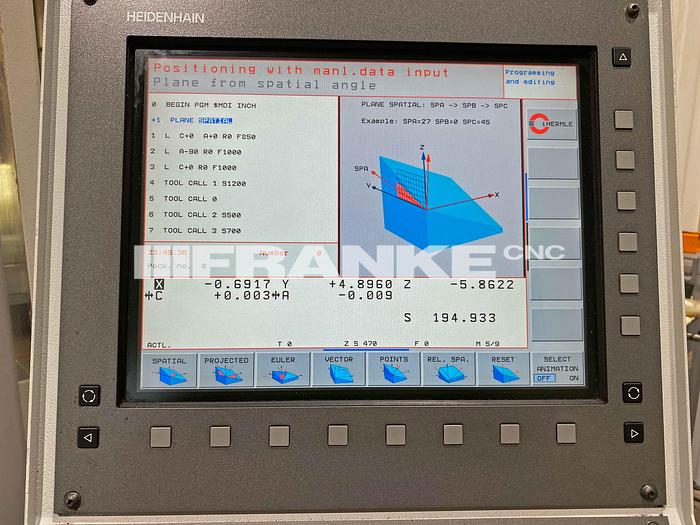

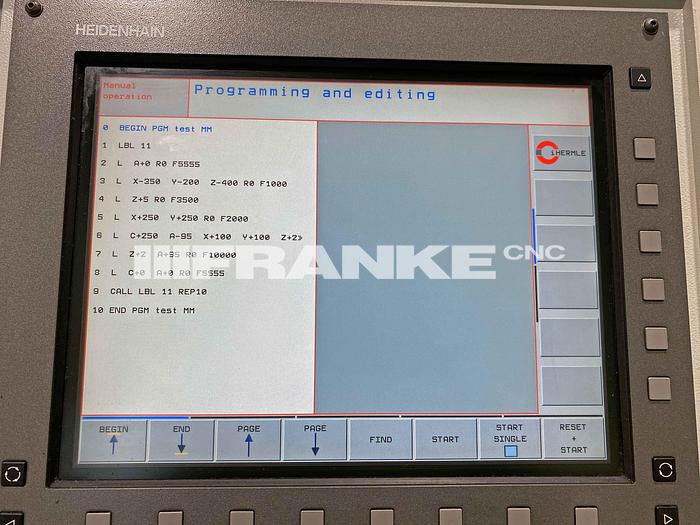

HEIDENHAIN iTNC 530 control with hand held electronic control unit
Rigid Tapping
Tool life monitoring
Ethernet connection for control
Electronic thermal compensation
HEIDENHAIN glass scales X/Y/Z axes resolution 0.0001 mm
HEIDENHAIN rotary encoders A/C axes resolution 0.0001 mm
Leveling shoes
Chip conveyor
Spray nozzle
Machine light

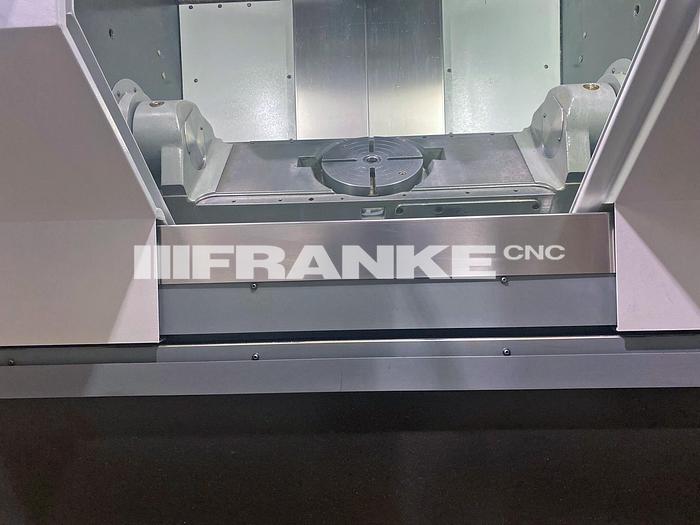

Completely enclosed machining area with protective bellows
Granite machine base
Available books, manuals, and technical documentation on hand for the machine
*May be inspected in plant under power by appointment*
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point.
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
Specifications
| Manufacturer | HERMLE |
| Model | C800U |
| Year | 2003 |
| Condition | Used |
| Stock Number | 064536 |
| Working Range X-Axis | 31.5" (800 mm) |
| Working Range Y-Axis | 23.62" (600 mm) |
| Working Range Z-Axis | 19.7" (500 mm) |
| Feed Drives Feed Force | 8,000 N |
| Feed Drives Rapid Movement | 1,378 IPM (35 m/min) |
| Feed Drives Acceleration | 5 m/s2 |
| Diameter and pitch of the ball screws X & Z axis | 40/20 mm |
| Diameter and pitch of the ball screws Y axis | 50/20 mm |
| Main Spindle Drive Spindle Power | 30.84 HP (23 kW) |
| Main Spindle Drive Spindle Torque | 58.3 lb/ft (79 Nm) |
| Main Spindle Drive Spindle Speed Range | 20-24,000 rpm |
| Main Spindle Drive Spindle Taper | HSK A63 |
| Tool Changer magazine positions | 30 |
| Max. tool diameter | 3.15" (80 mm) |
| Max. tool diameter with adjacent pockets empty | 4.92" (125 mm) |
| Max. tool length | 11.81" (300 mm) |
| Max. tool weight | 17.6 lb (8 kg) |
| Max. weight capacity of tool magazine | 265 lb (120 kg) |
| Chip to chip time acc. to VDI 2852 | 6.0 seconds |
| Flood Cooling System coolant tank capacity | 79.2 gallon (300 l) |
| Flood Cooling System pump capacity | 10.6 gallon/min (40 l/min) |
| Flood Cooling Sytem pump pressure | 43.5 PSI (3 bar) |
| Weight with NC controlled swivelling rotary table | Approximately 18,000 lb |
| Connection mains | 400V/60 Hz |
| Connection power consumption | 37 KVA |
| Connection compressed air | 87 PSI (6 bar) |

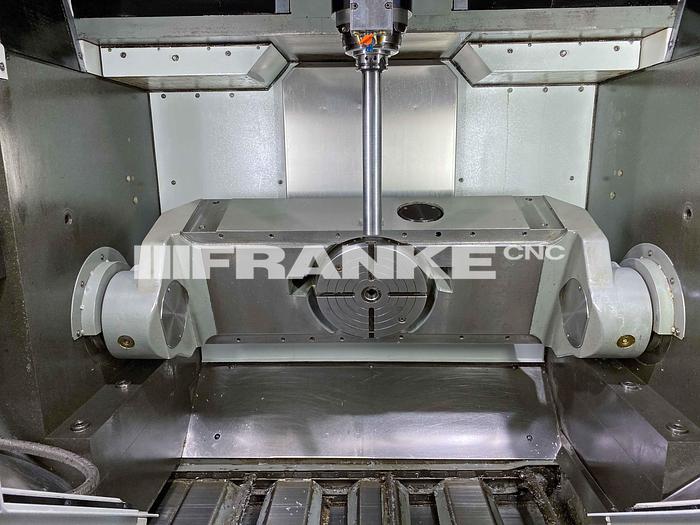

| NC-Controlled Swiveling Rotary Trunnion Table rotary table diameter | 11.02" (280 mm) |
| A-Axis Swivel Range of Table | Plus or Minus 110 degrees (Full 5th Axis) |
| C-Axis Rotary Range of Table | 360 x 0.001 degrees (Full 4th Axis) |
| Maximum table load capacity | 440 lb (200 kg) |
| Optional rotary table top diameter possible | 17.7" (450 mm) (NOT with machine) |
